Product family
Rugged rack-mount servers and workstations from 1U to 4U, built by Crystal Group for vehicles, ships, aircraft and field sites, and supplied and supported in Israel by CoreTech.
10 products

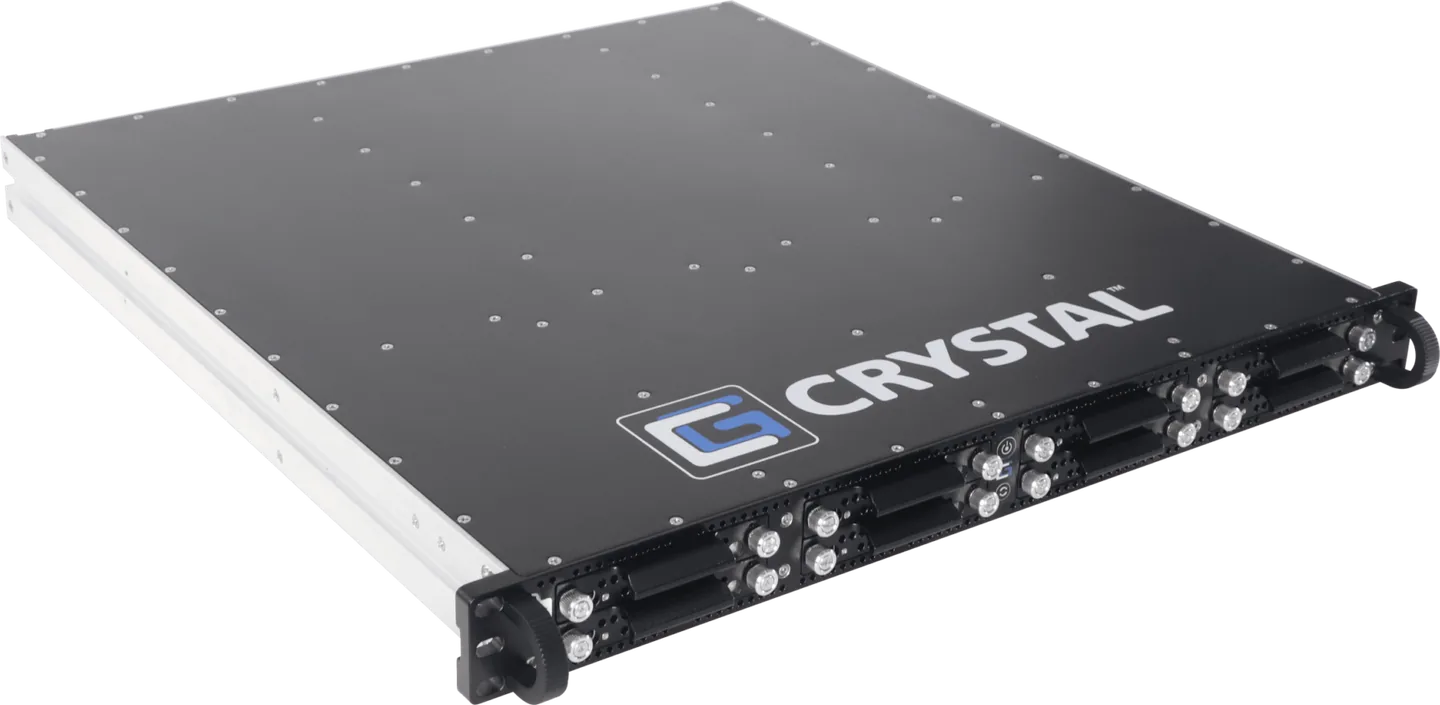

Rugged 1U Server
FG2 1100 Series servers provide enhanced storage and CPU options based on specific application needs.

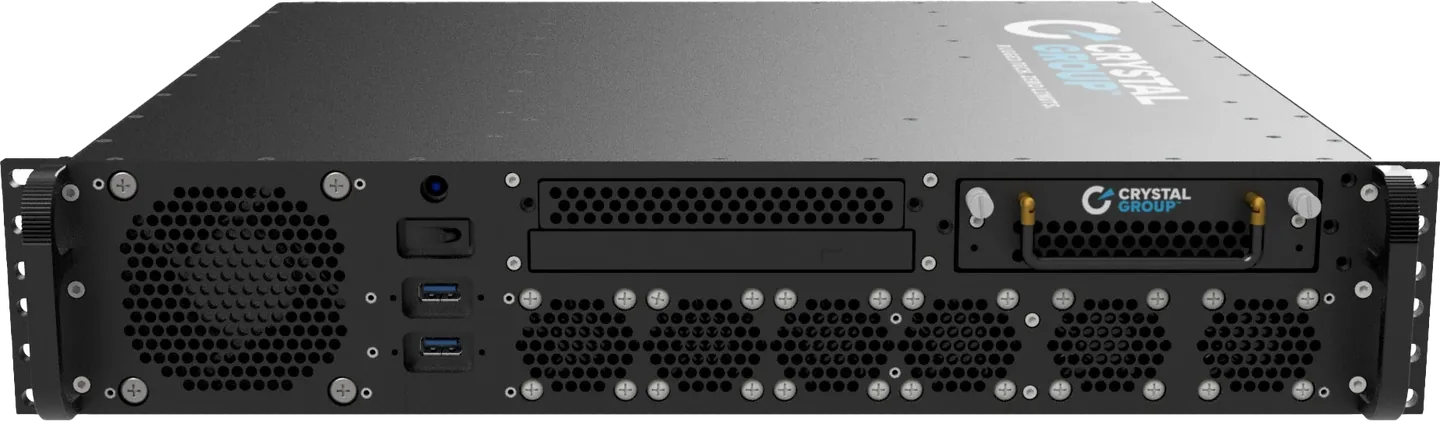

Rugged 2U Short-Depth Workstation
Field tested, failsafe and long life performance in extreme conditions.
Rugged 4U GPU Server
High-performance computing & high-capacity data storage in a rugged chassis.
Buying guide
Start with the rack: how many units of height the server can have, and how deep the rack is. Then the workload decides how many GPUs and drives you need, and the platform decides the power: AC, 400 Hz aircraft power or 18–36 VDC vehicle power.
Each server below has its own page with full specifications, and each can be configured: processors, memory, drives, power supplies and mounting.

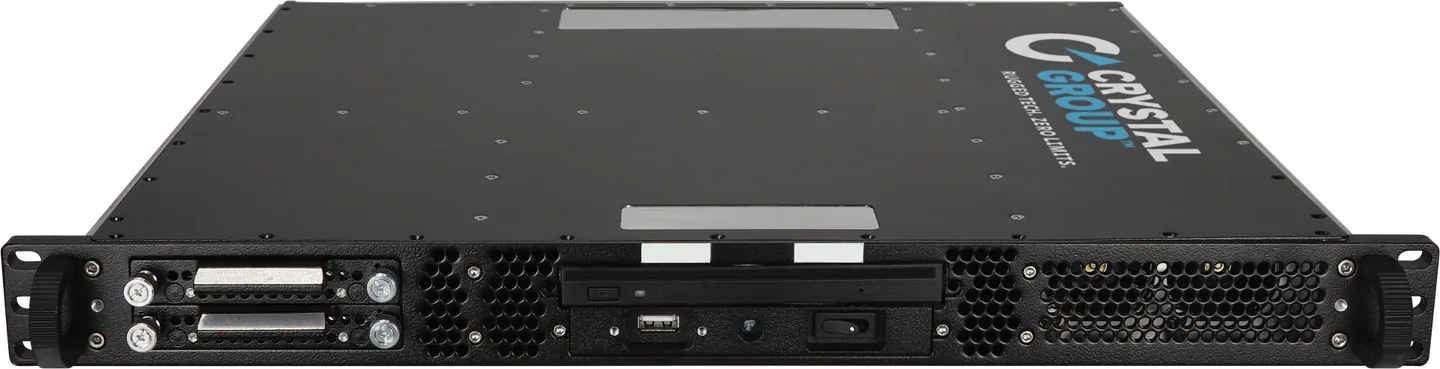

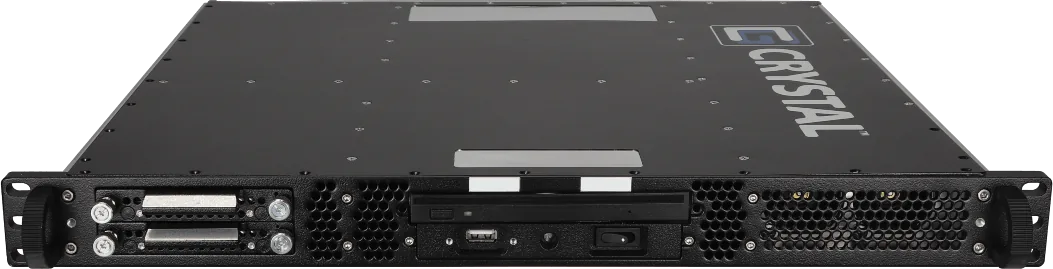

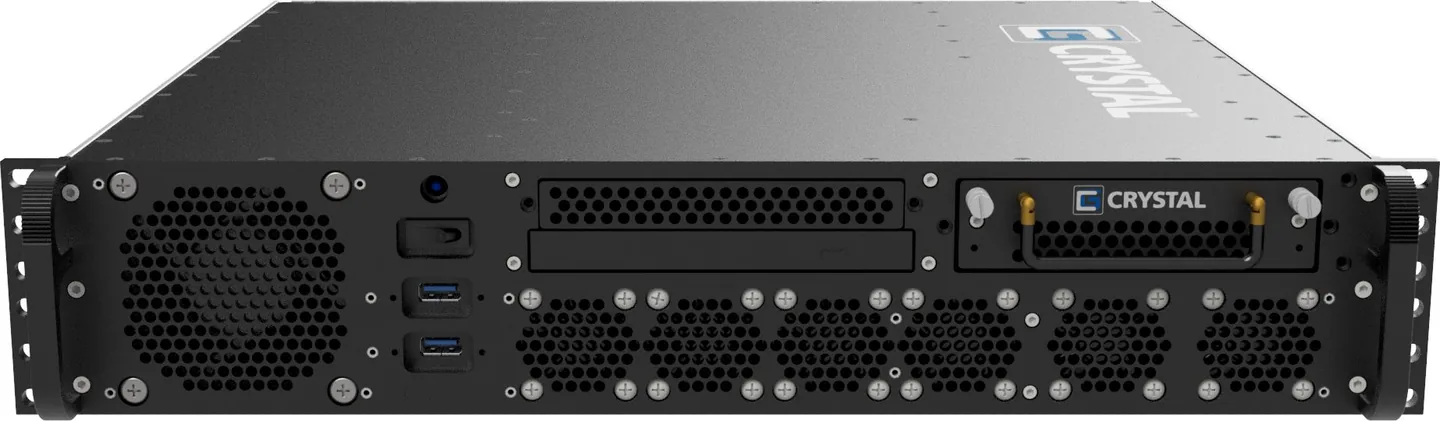

| Shallow racks | RS121S16 (1U, 16 in deep) and RS232S17A (2U, 17 in deep). |
|---|---|

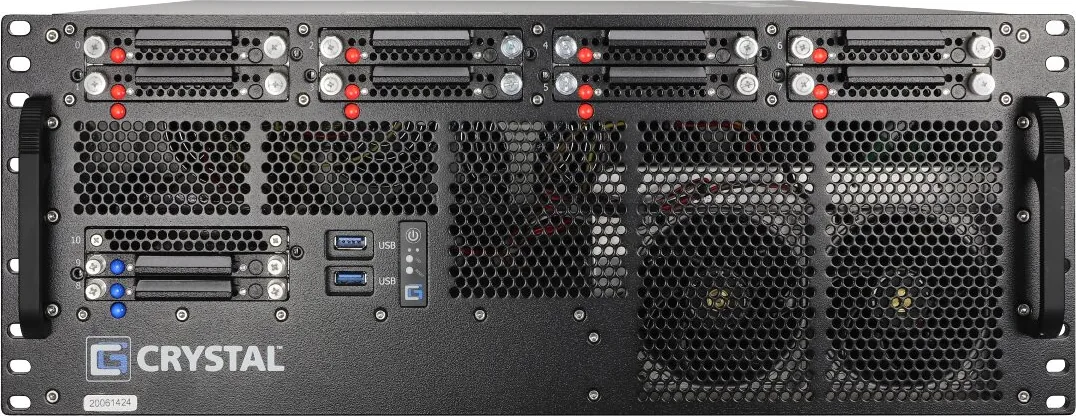

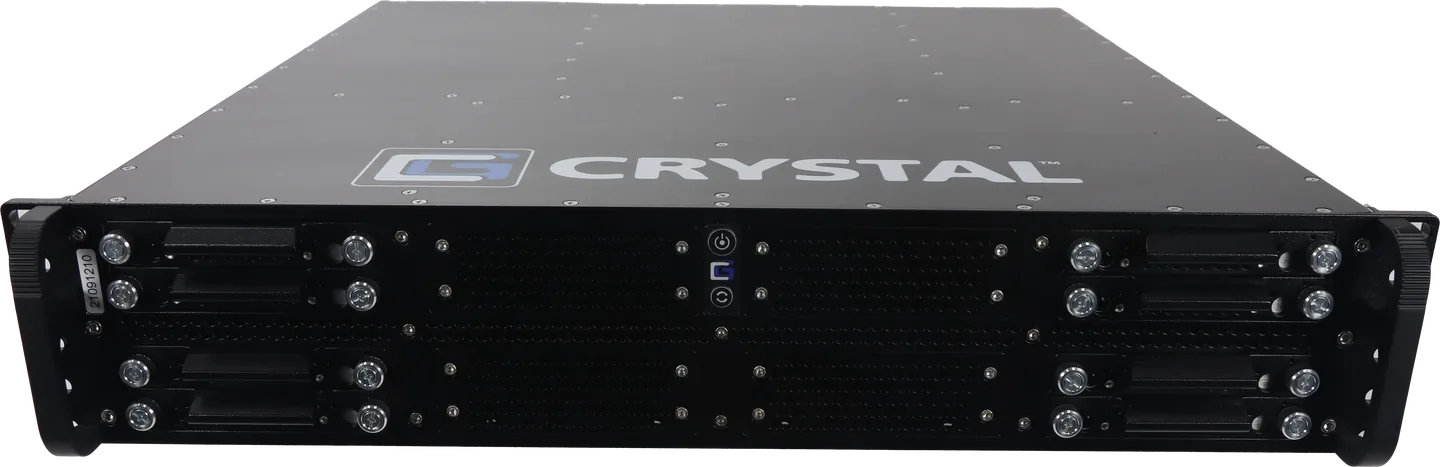

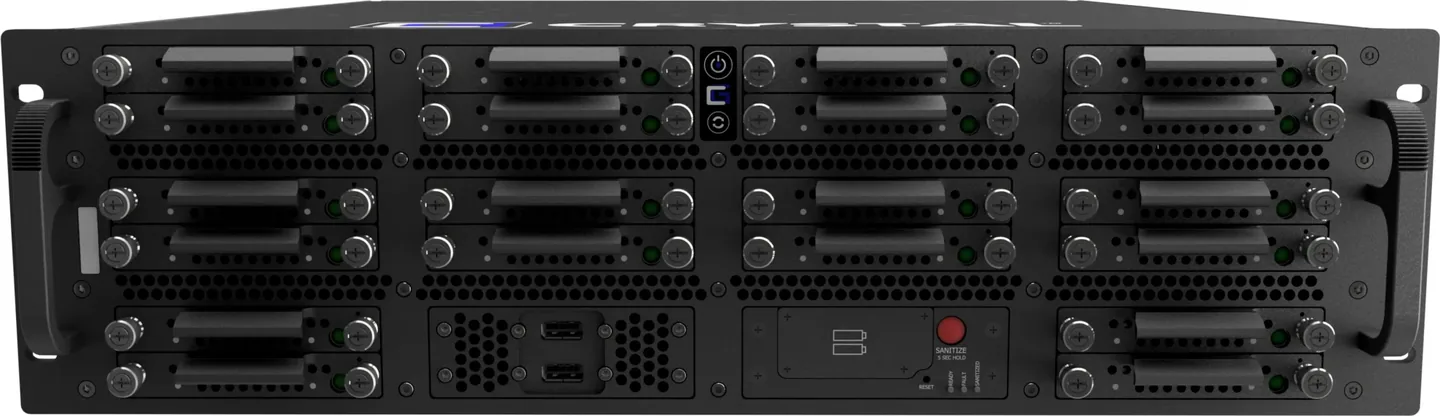

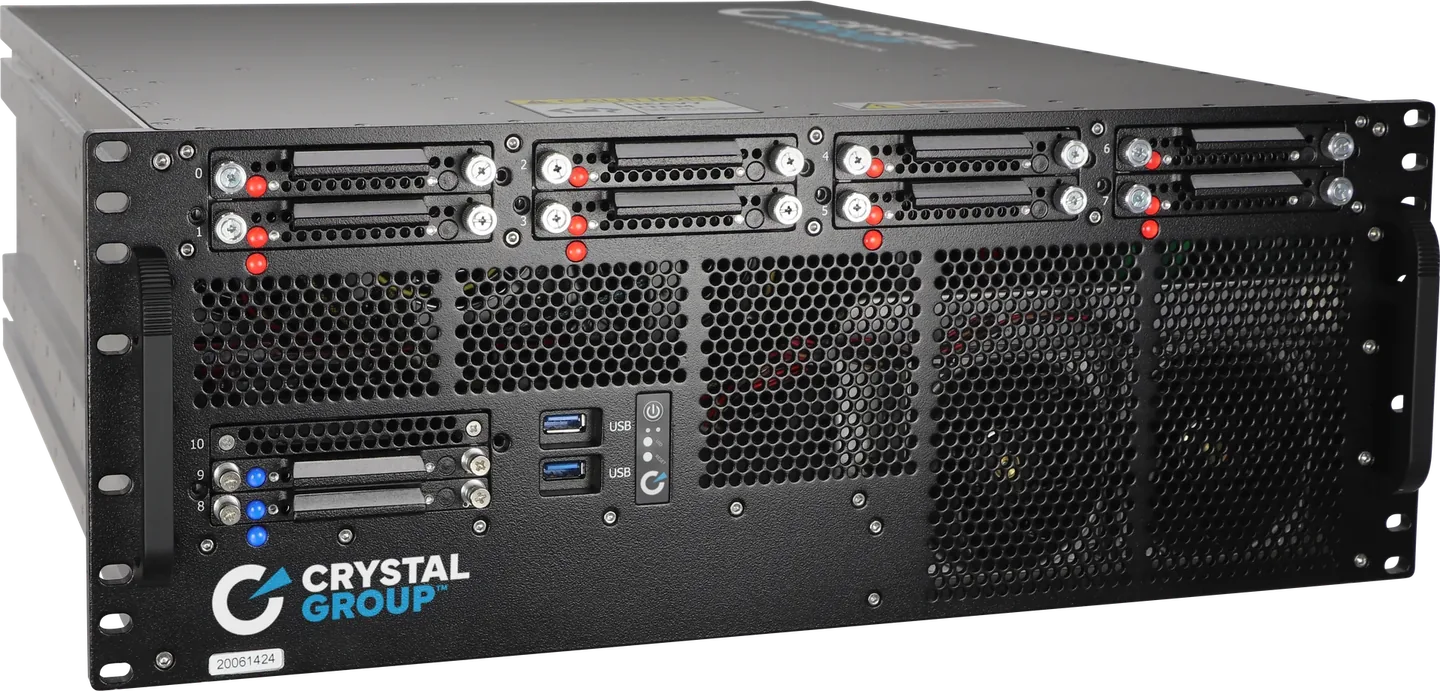

| GPU computing | FG2 2600 (2U) and FG2 3700 (3U), each with up to four GPUs, and RS4105L22 (4U), designed for four high-powered GPGPUs. |

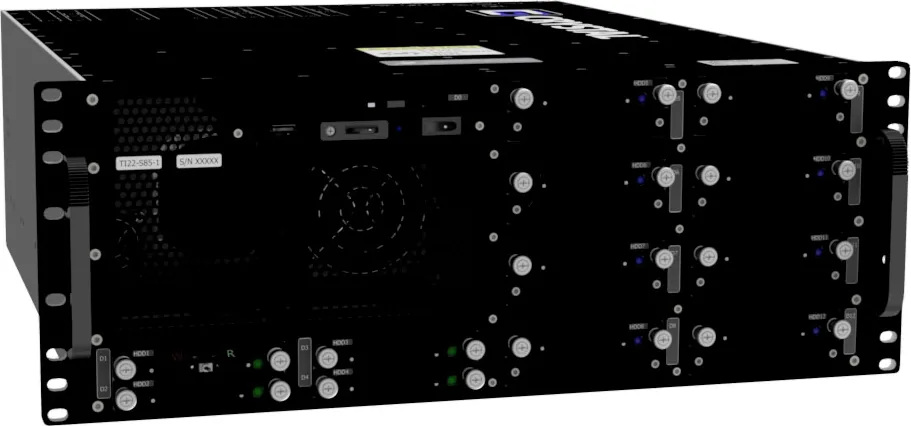

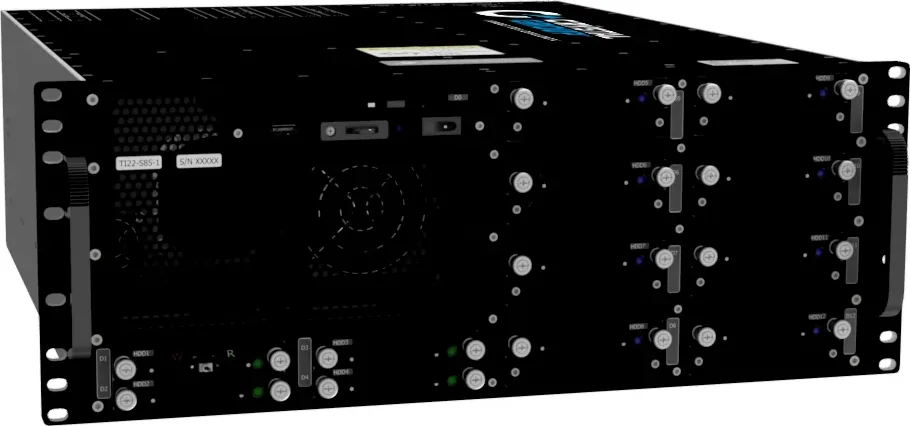

| Storage and expansion | FG2 3700, with up to 24 SATA/SAS or 12 NVMe drives and seven full-height slots, and RS41110L21, with up to 20 SSDs and eleven PCIe slots. |
| 18–36 VDC vehicle power | FG2 1100, FG2 2600, FG2 3700, RS232S17A and RS4105L22. |
| 400 Hz aircraft power | FG2 1100 (AC at 50/60 or 400 Hz), RS121S16 and RS232S17A (115 VAC 400 Hz). |
| Shipboard shock | FG2 1100 lists MIL-S-901E Class II; RS121S16, RS4105L22 and RS41110L21 list MIL-S-901 Grade B. |
Questions
It is built for the shock, vibration, temperature extremes, humidity and electrical noise that would stop a commercial server. The servers here are built by Crystal Group in rugged all-aluminum chassis, and each product page lists the military standards it is tested or designed to, such as MIL-STD-810, MIL-STD-461 and MIL-S-901.
The RS121S16 is 16 inches (40.6 cm) deep and the RS232S17A 17 inches (43.2 cm). The FG2 2600 and FG2 3700 come 19 or 22 inches deep.
The FG2 1100, FG2 2600, FG2 3700, RS232S17A and RS4105L22 have 18–36 VDC power supply options.
The FG2 2600 (2U) and FG2 3700 (3U) each take up to four GPUs, and the RS4105L22 (4U) is designed for four high-powered GPGPUs.
Yes. Tell us the workload, the power and the rack space, and CoreTech will specify a configuration and send a quotation.
Every system comes with a 5-year warranty. CoreTech handles quotations, technical questions and RMA cases in Israel, repairs are carried out in Israel by its technical team, and every system is checked by the team before delivery.
