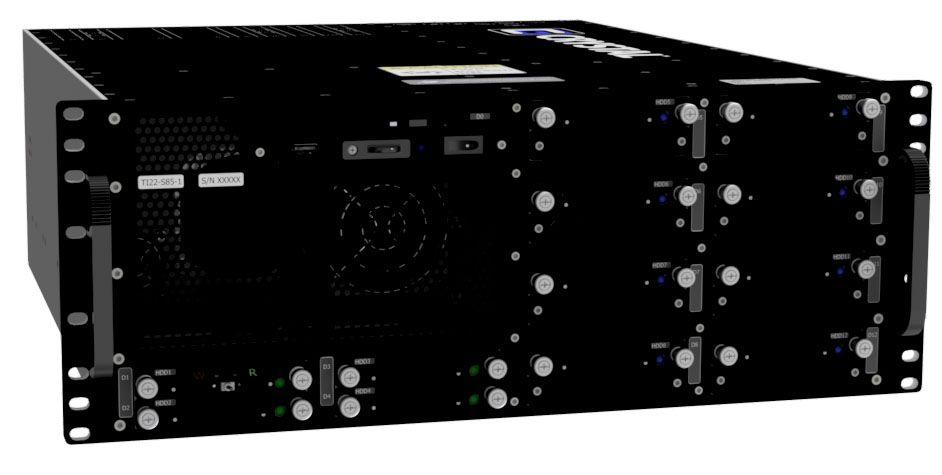

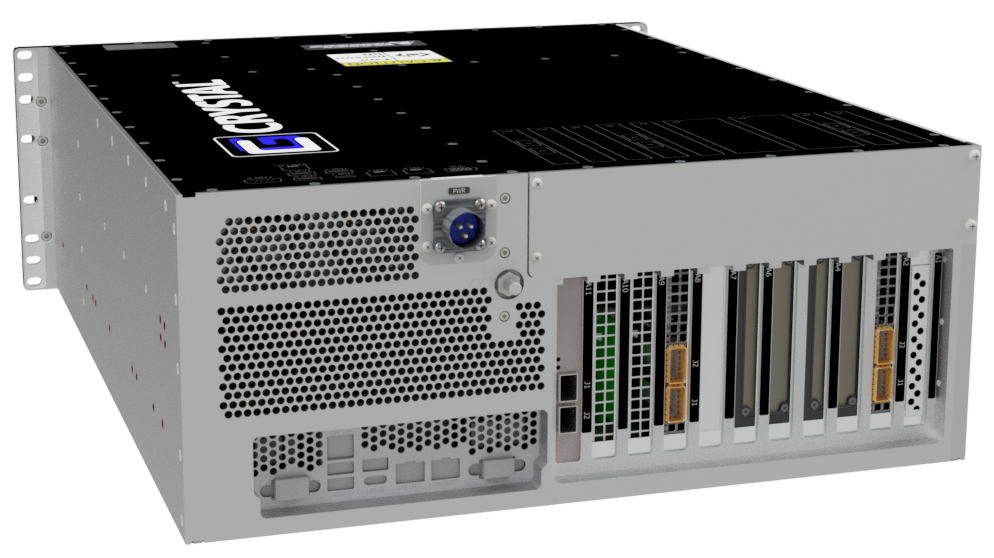

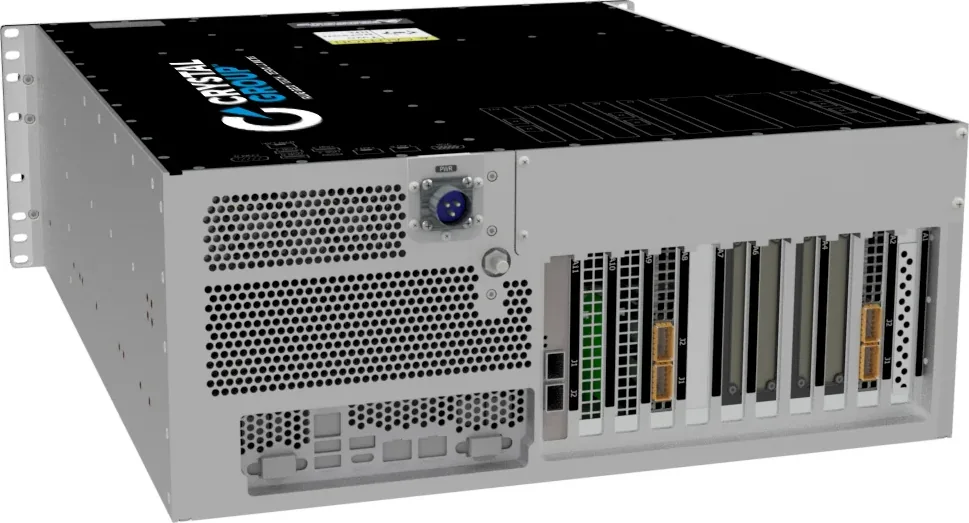

RS41110L21 Rugged 4U Server

A 4U rugged server, 20.7 inches deep, designed for two high-powered GPGPUs: dual Intel Xeon Scalable processors, eleven PCIe slots and up to 20 SSDs in ten modular bays, on 1200 W AC power. Built by Crystal Group and supplied in Israel by CoreTech.

Request current datasheet

Manufactured by Crystal Group

Form factor
4U, 20.7" deep
PCIe slots
11
Storage
Up to 20 SSDs
Temperature
−30 °C to +55 °C

Applications

Where it fits.

The RS41110L21 gives high-end computing and high-capacity storage a rugged, all-aluminum home that fits most rack spaces at 20.7 inches deep. It is aimed at DSP, SIGINT, C4ISR and radar programs that need many expansion cards and drives in one server.

  • DSP, SIGINT, C4ISR and radar applications
  • Real-time communications and networking
  • Weapons control
  • Situational awareness
  • Surveillance
  • Unmanned aircraft and autonomous operations

Technical detail

Know the platform.

RS41110L21 technical specifications

Form Factor 4U
Height 7" (17.78cm)
Width 17.5" (44.45cm); EIA-310 rack compliant
Depth 20.7" (52.6cm)
Weight 51 - 55lbs (23.13 - 24.95 kgs)
CPU Dual socket Intel® Xeon® Scalable processors
Expansion Slots Eleven PCIe expansion slots
External Bays Ten Crystal Group expansion bays, up to 20x SSD or other accessory modules
Memory 32GB – 4TB DDR4 RDIMM/LRDIMM
Power Supply 1200W 120/240VAC 50/60Hz
Cooling Seven high-speed, high-volume fans; speed controlled
Software Capability Supports Windows 10®, Windows Server, VMware®, or Linux®
Mounting Crystal glides or Jonathan rails
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II -30°C to +55°C
MIL-STD-810, Storage, Method 501, Procedure I/II -40°C to +85°C

Configuration affects weight and available options. Confirm your required configuration with CoreTech.

Configuration

Choose the right configuration.

Tell us how many cards and drives you need, and the rack space available, and we will come back with a configuration and a quotation.

Processors Dual-socket Intel Xeon Scalable
Memory 32 GB to 4 TB DDR4 RDIMM/LRDIMM
GPGPUs Designed for two high-powered GPGPUs
Expansion Eleven PCIe slots
Storage Ten Crystal Group modular bays, for up to 20 SSDs or other accessory modules
Power 1200 W, 120/240 VAC 50/60 Hz
Cooling Seven high-speed, high-volume, speed-controlled fans
Size and weight 4U: 7" (17.8 cm) high, 17.5" (44.45 cm) wide, 20.7" (52.6 cm) deep, EIA-310 compliant. 51–55 lb (23.1–24.9 kg)
Mounting Crystal glide rails or Jonathan rails
Software Windows 11, Windows Server, VMware or Linux
Environment Tested to MIL-STD-810 for operating temperature (−30 °C to +55 °C), storage temperature (−40 °C to +85 °C), humidity (with conformal coating) and altitude (12,500 ft operating); 2 GRMS vibration. MIL-S-901 Grade B, with a test report
EMC MIL-STD-461 RE102 and CE102 (AC); FCC (AC)

Why source it through CoreTech

  • A local contact in Rishon LeZion, Israel, for quotations and technical questions.
  • Every system is checked by CoreTech's technical team before delivery.
  • Every system comes with a 5-year warranty.
  • RMA cases are handled in Israel, and repairs are carried out in Israel by CoreTech's technical team.
  • Lead times from about a week to a few months, depending on the configuration.

Questions

Common questions.

How many PCIe slots does the RS41110L21 have?

Eleven, and it is designed for two high-powered GPGPUs.

How much storage does it hold?

Up to 20 SSDs or other accessory modules, in ten Crystal Group modular bays.

How much memory does it take?

Up to 4 TB of DDR4 RDIMM/LRDIMM.

What temperature range does it operate in?

−30 °C to +55 °C, tested to MIL-STD-810 Method 501. The storage range is −40 °C to +85 °C.

What power does it need?

1200 W at 120/240 VAC, 50/60 Hz.

What is the difference between the RS41110L21 and the RS4105L22?

The RS41110L21 is 20.7 in deep, with eleven PCIe slots and up to 20 SSDs, on 1200 W AC, rated to +55 °C. The RS4105L22 is 22 in deep and designed for four GPGPUs, with ten slots and up to 15 SSDs, and adds HVDC and 18–36 VDC power with N+1 redundancy.

What warranty do the systems have, and who handles RMA?

Every system comes with a 5-year warranty. CoreTech handles RMA cases in Israel, and repairs are carried out in Israel by its technical team.

How long does delivery take?

From about a week to a few months, depending on the configuration.

How do I get a quote in Israel?

Use “Request a quote” on this page, or call +972-73-3224235.
