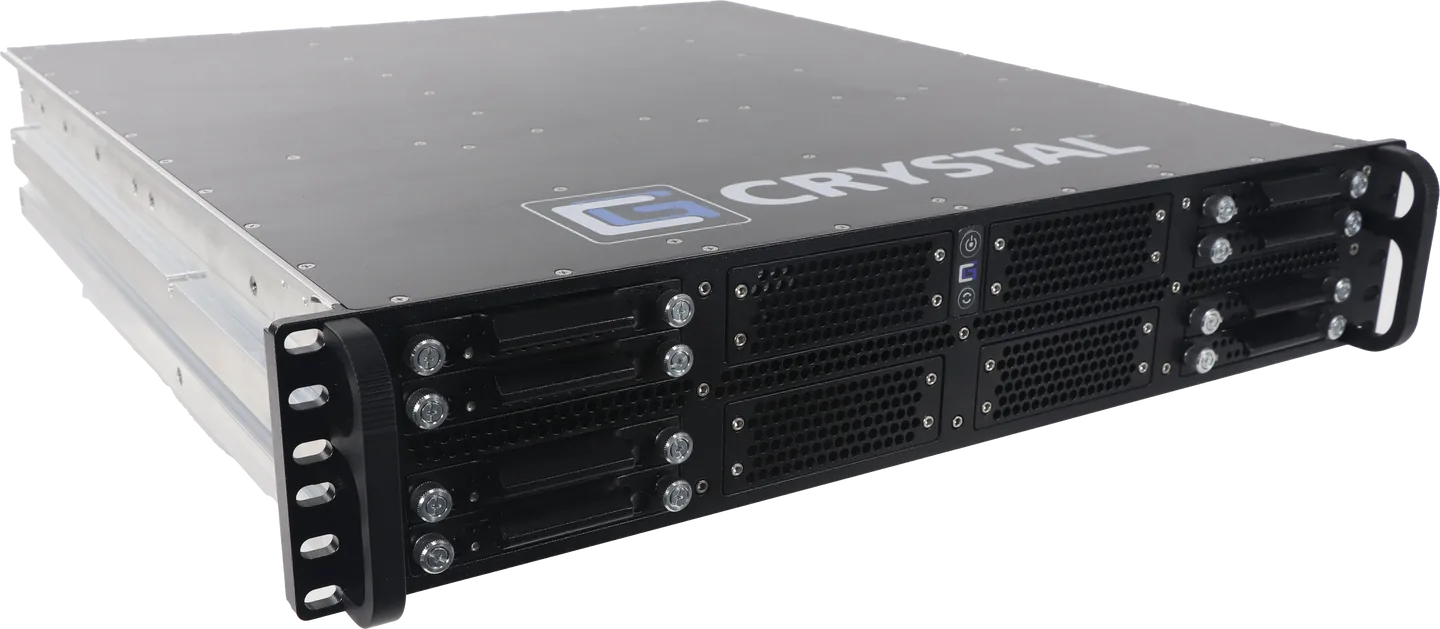

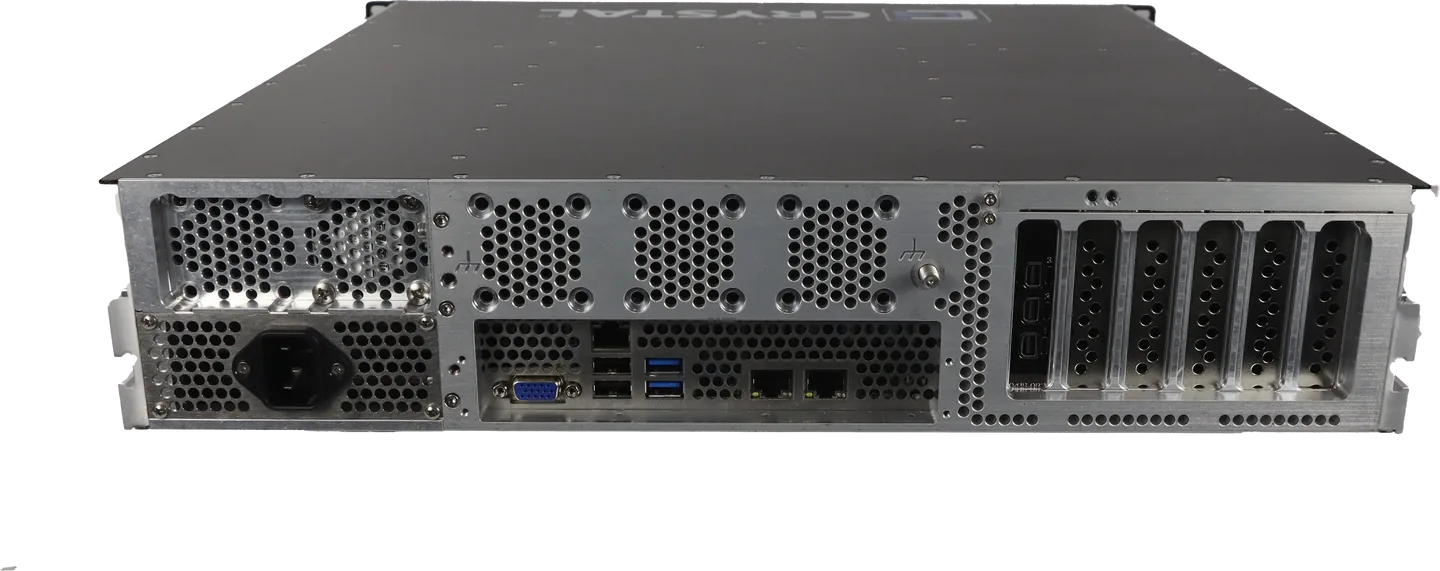

FG2 2600
Rugged server
Overview
About this platform.
2U Rugged servers
Equipped with up to four state-of-the-art GPUs and two Intel® Xeon® Scalable or AMD EPYC™ processors in an unmatched rugged design, the FG2 2600 Series servers deliver exceptional reliability and Tensor Core performance at the tactical edge. Up to eight NVMe or sixteen SATA/SAS drives can be configured for CSfC data storage for applications requiring FIPS 140-2 certification.
Designed to handle challenging, yet critical inference obstacles, the extreme, scalable compute power of the FG2 2600 Series brings ultra-low latency and seamless operation to the most volatile, mission-critical conditions when real-time situational awareness and AI can’t be compromised. InfiniBand I/O connectivity provides critical, rapid data transfer for low-latency backhaul applications.
This NVIDIA-Certified System is validated for optimal performance, manageability, security and scalability.
Technical detail
Know the platform.
FG2 2600 technical specifications
| Form Factor | 2U |
|---|---|
| Height | 3.5” (8.89 cm) |
| Depth | 19” (48.3 cm) or 22” (58.88 cm) |
| Width | 17.5” (44.45 cm) |
| Weight | 32–38 lbs (14.51–17.23 kg) |
| Mounting | Glides, fixed mount (front and rear), or Jonathan rails |
| Power Supply | 800WAC, 1005W 18–36VDC, or 1200W AC 1+1 |
| CPU Architecture | 4th Generation Intel Xeon Scalable or AMD EPYC 9004 series processors; Up to 96 cores per socket (motherboard dependent) |
| Memory | 16GB–4TB DDR5 ECC SDRAM (motherboard dependent) |
| Expansion | Up to six low-profile PCIe slot |
| External Bays | Up to 16 SATA or SAS SSDs; Up to 8 U.2/U.3 NVME SSDs; Optional optical drive |
| Software Compatibility | Windows 10, Windows 11, Windows Server, VMware, Linux |
| MIL-STD-810, Operational Temperature, high | Procedure II: +50°C, two-hour dwell, four cycles |
| MIL-STD-810, Operational Temperature, low | Procedure II: -30°C, two-hour dwell, four cycles |
| Electromagnetic Compatibility | MIL-STD-461 EMI/EMC, RE102, CE102; surface ship, below deck, and ground; RTCA/DO-160 Aircraft and airborne equipment, Category M |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
