CoreTech / Rugged servers

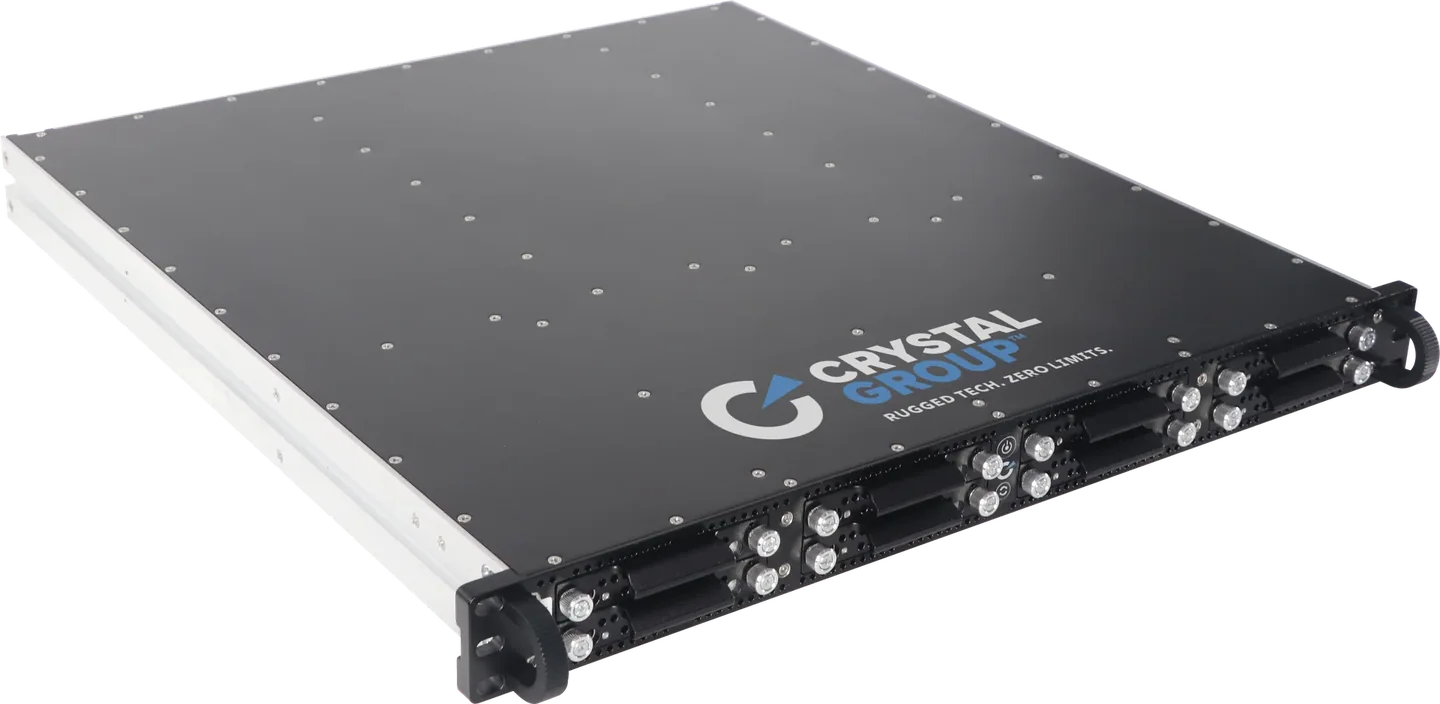

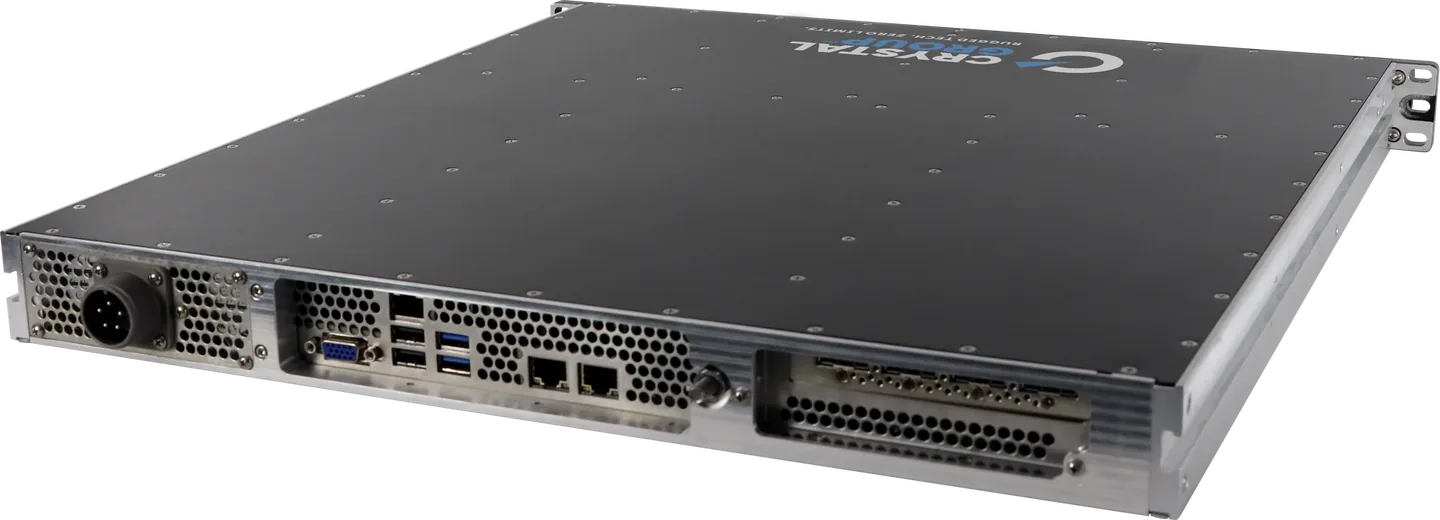

FG2 1100
1U
FG2 1100 Series servers provide enhanced storage and CPU options based on specific application needs
Overview
About this platform.
. Intel’s® 3rd Gen Xeon® Scalable processors have built-in artificial intelligence (AI) acceleration with Intel® Deep Learning Boost, advanced encryption standard (AES), total memory encryption, software guard extensions (SGX), support a single- or dual-socket P+ FG2 motherboard, and increase system memory bandwidth with up to eight 3200MHz DDR4 channels.
Technical detail
Know the platform.
FG2 1100 technical specifications
| Form Factor | 1U |
|---|---|
| Height | 1.75” (4.45 cm) |
| Depth | 19” (48.3 cm) |
| Width | 16.9” (44.5 cm) |
| Weight | 23–26 lbs (10.4-11.8 kg) |
| Mounting | Glides, fixed mount (front and rear), or Jonathan rails |
| Power Supply | 800WAC, 50/60 or 400Hz, 505W 18–36VDC |
| CPU Architecture | 4th Generation Intel Xeon Scalable or AMD EPYC 9004 series processors; CPU Power: up to 165W per socket |
| Memory | 16GB–4TB DDR5 ECC RDIMM (motherboard dependent) |
| Expansion | One low-profile or full-height PCIe slot (motherboard dependent) |
| External Bays | Option 1: Up to 8 SATA or SAS SSDs; Option 2: Up to 4 U.2/U.3 NVME SSDs |
| Software Compatibility | Windows 11, Windows 10, Windows Server, VMware, Linux |
| MIL-STD-810, Operational Temperature, high | Procedure II: +55°C, two-hour dwell, four cycles |
| MIL-STD-810, Operational Temperature, low | Procedure II: -40°C, two-hour dwell, four cycles |
| Electromagnetic Compatibility | MIL-STD-461 EMI/EMC, RE102, CE102; surface ship, below deck, and ground; RTCA/DO-160 Aircraft and airborne equipment, Category M |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
