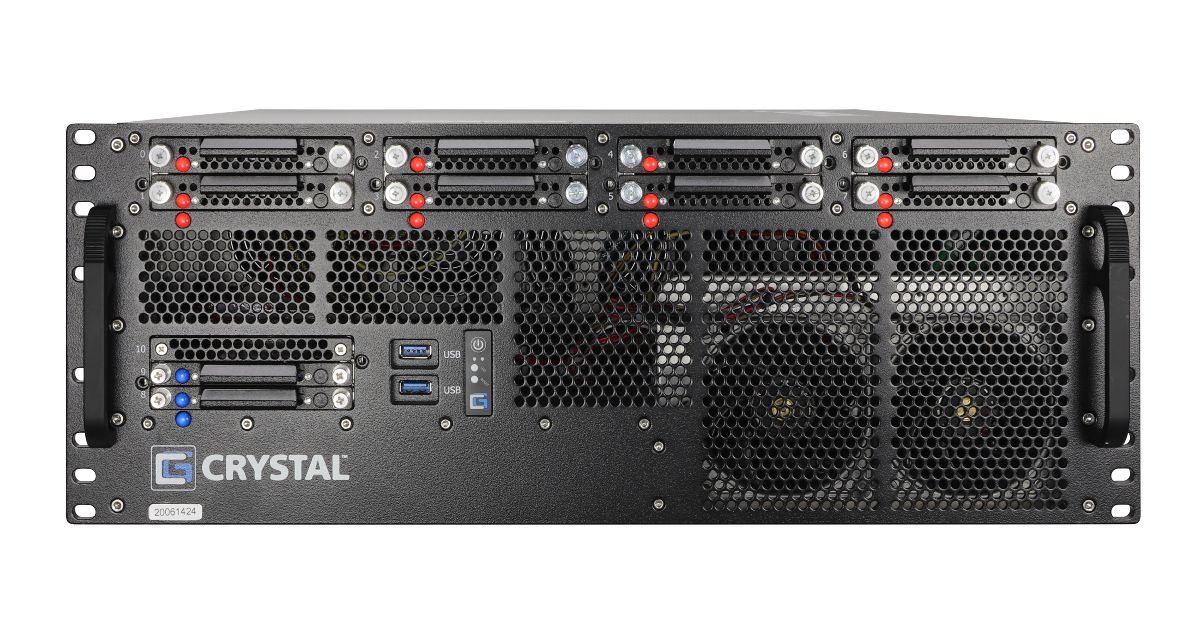

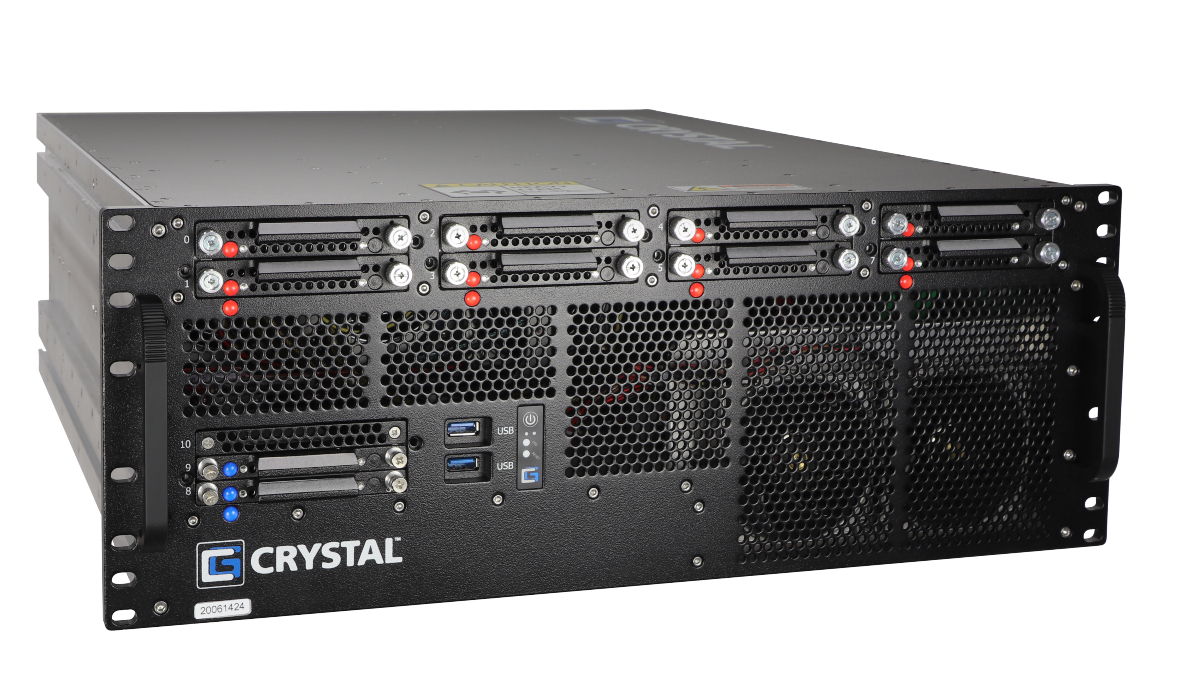

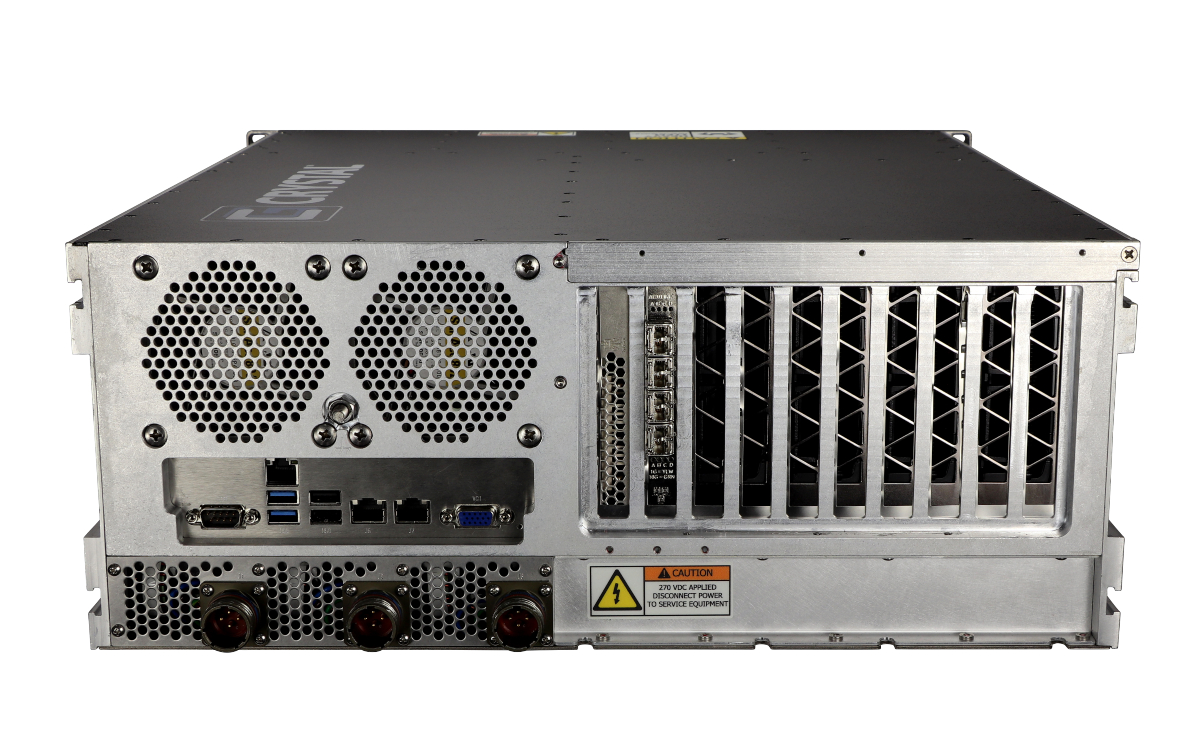

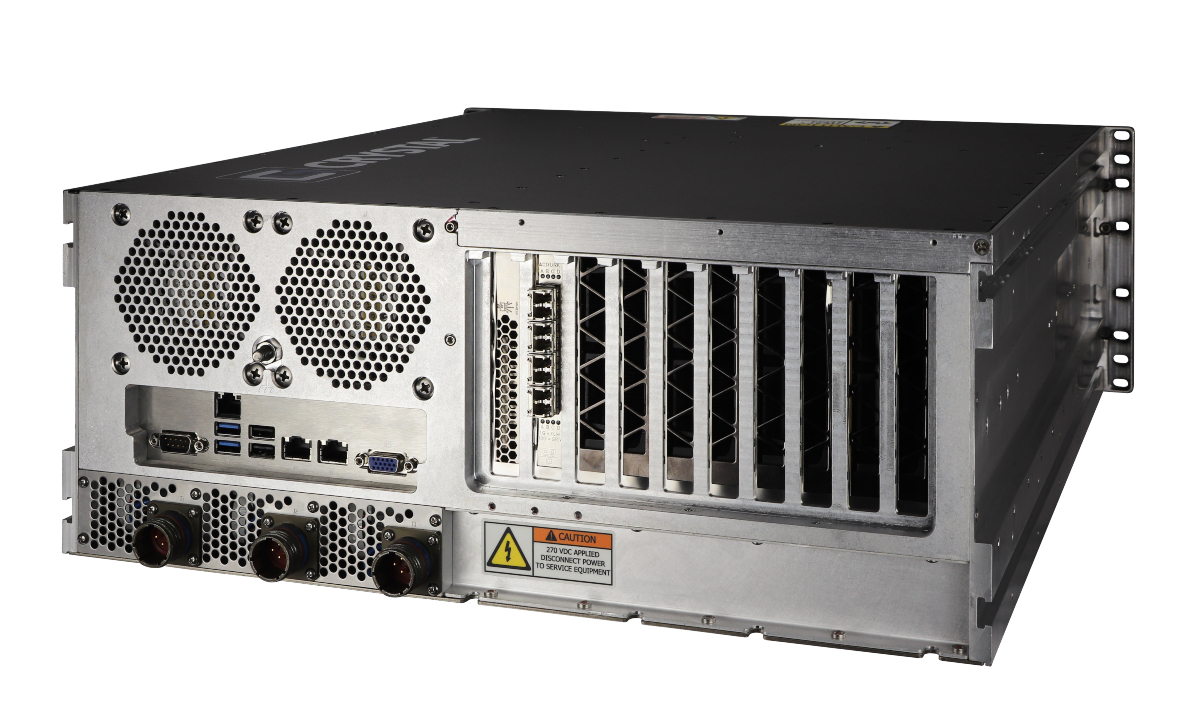

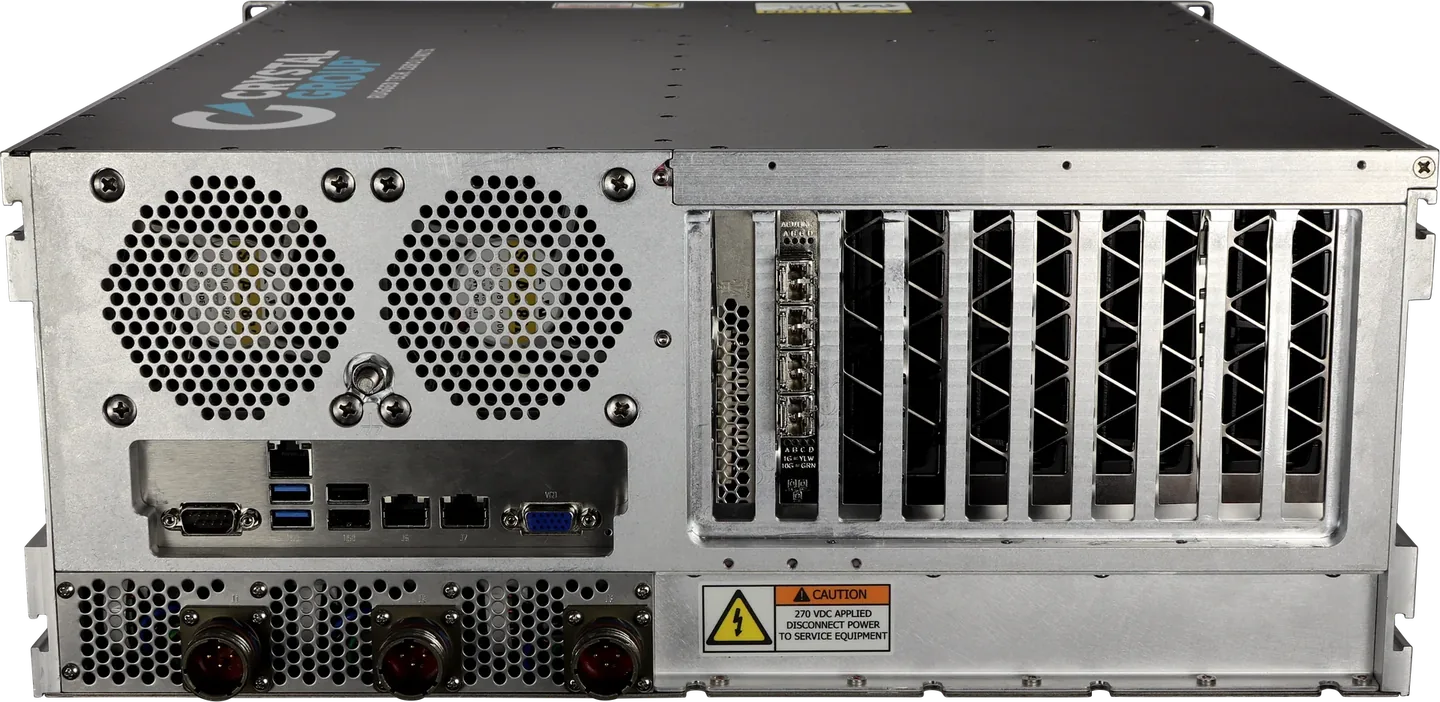

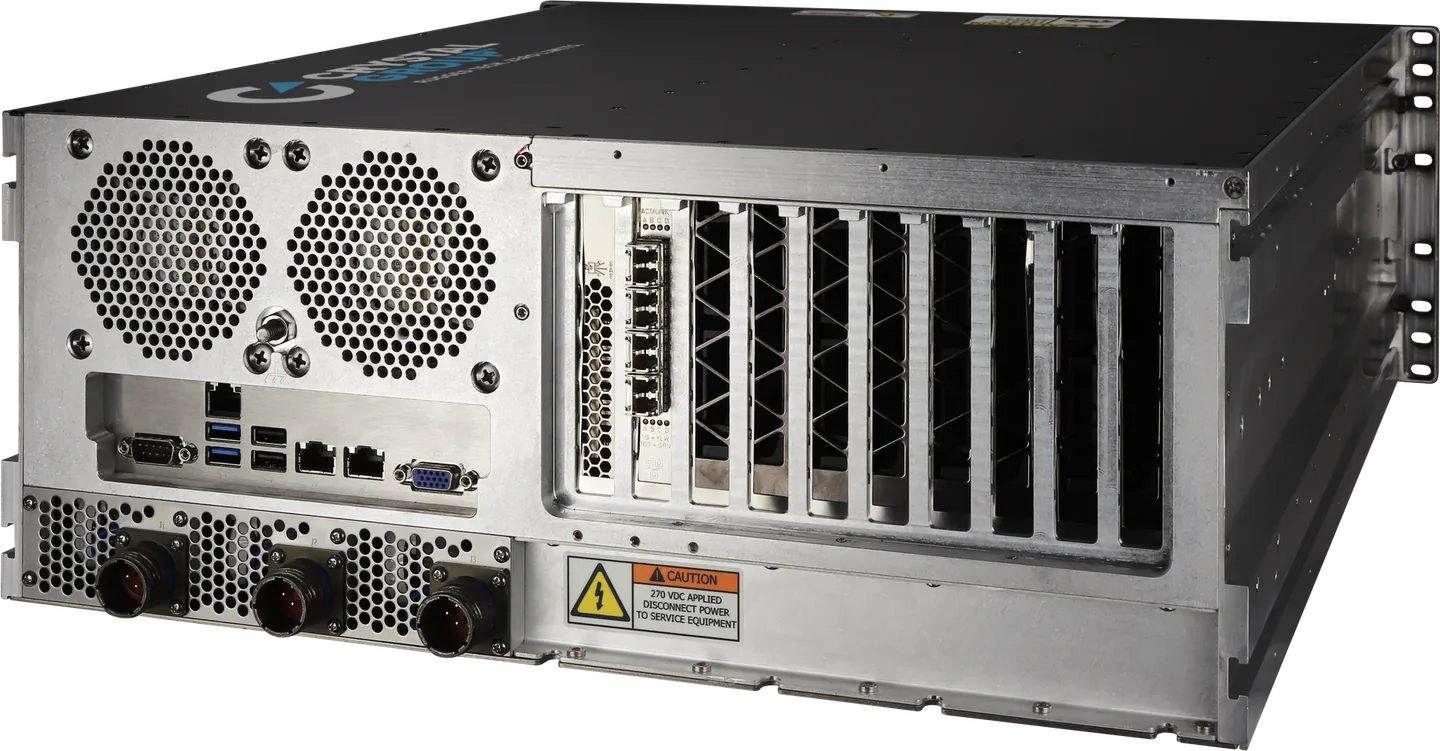

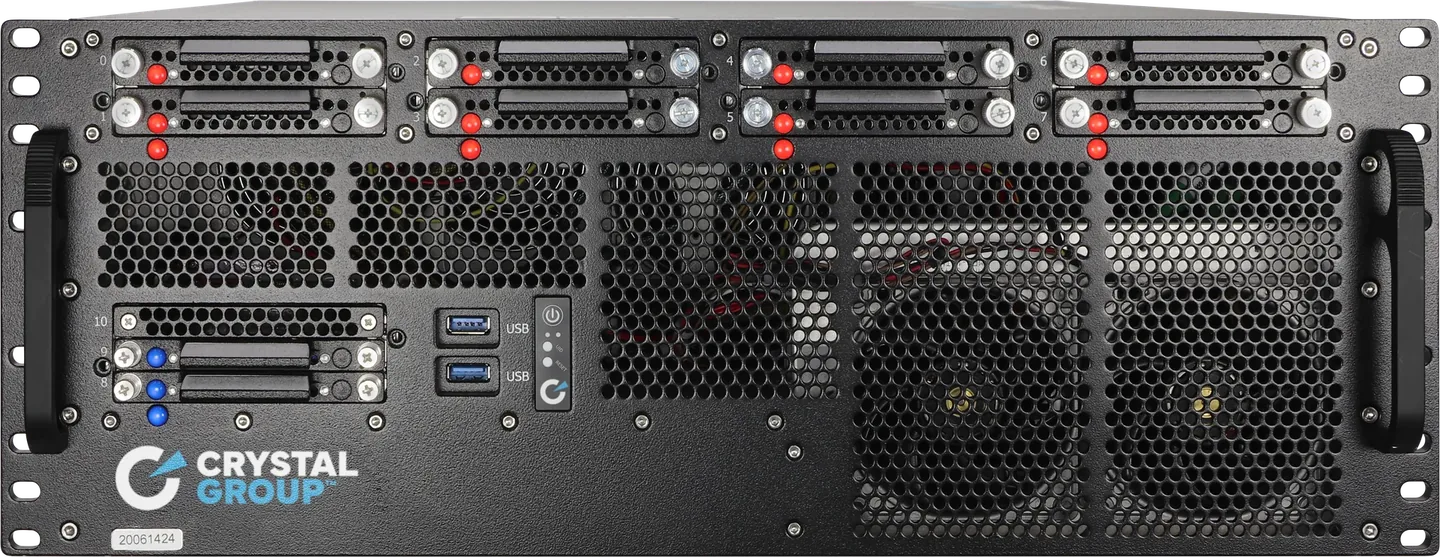

RS4105L22 Rugged 4U GPU Server

A 4U rugged server, 22 inches deep, designed for four high-powered GPGPUs: dual Intel Xeon Scalable processors, ten PCIe slots and up to 15 SSDs in five modular bays. 3000 W AC and HVDC, or 1620 W 18–36 VDC, both N+1 redundant. Built by Crystal Group and supplied in Israel by CoreTech.

Request current datasheet

Manufactured by Crystal Group

Form factor
4U, 22" deep
GPGPUs
Designed for 4
Memory
Up to 3 TB DDR4
Power
AC or 18–36 VDC, N+1

Applications

Where it fits.

The RS4105L22 puts high-performance computing and high-capacity storage into a rugged, all-aluminum chassis that fits most rack spaces at 22 inches deep. It is aimed at DSP, SIGINT, C4ISR and radar programs, where several GPGPUs and a lot of storage have to work in harsh conditions.

  • DSP, SIGINT, C4ISR and radar applications
  • Real-time communications and networking
  • Weapons control
  • Situational awareness
  • Surveillance
  • Unmanned aircraft and autonomous operations

Technical detail

Know the platform.

RS4105L22 technical specifications

Form Factor 4U
Height 7" (17.78cm)
Width 17.5" (44.45cm); EIA-310 rack compliant
Depth 22" (55.88cm)
Weight 55 - 66 lbs (24.95 - 29.94 kgs)
CPU Dual socket Intel® Xeon® Scalable processors
Expansion Slots Ten PCIe expansion slots
External Bays Five Crystal Group expansion bays, up to 15x SSD or other accessory modules
Memory 16GB-3TB DDR4 RDIMM/LRDIMM
Power Supply Option 1: 3000W 120/240VAC 50/60Hz and 180-350VDC, N+1 redundant; Option 2: 1620W and 18-36VDC, N+1 redundant
Cooling 10 high-speed, high-volume fans; CPU temperature controlled
Mounting Crystal Glides or Jonathan rails
Software Capability Accepts Windows 10®, Windows Server, VMware® or Linux®
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II -30°C to +50°C
MIL-STD-810, Storage, Method 501, Procedure I/II -40°C to +85°C

Configuration affects weight and available options. Confirm your required configuration with CoreTech.

Configuration

Choose the right configuration.

Tell us how many GPUs and drives you need, and the power and rack space available, and we will come back with a configuration and a quotation.

Processors Dual-socket Intel Xeon Scalable
Memory 16 GB to 3 TB DDR4 RDIMM/LRDIMM
GPGPUs Designed for four high-powered GPGPUs
Expansion Ten PCIe slots
Storage Five Crystal Group modular bays, for up to 15 SSDs or other accessory modules
Power 3000 W, 120/240 VAC 50/60 Hz and 180–350 VDC, N+1 redundant; or 1620 W 18–36 VDC, N+1 redundant
Cooling Ten high-speed, high-volume fans, controlled by CPU temperature
Size and weight 4U: 7" (17.8 cm) high, 17.5" (44.45 cm) wide, 22" (55.9 cm) deep, EIA-310 compliant. 55–66 lb (24.9–29.9 kg)
Mounting Crystal glide rails or Jonathan rails
Software Windows 11, Windows Server, VMware or Linux
Environment Tested to MIL-STD-810 for operating temperature (−30 °C to +50 °C), storage temperature (−40 °C to +85 °C), humidity (with conformal coating) and altitude (12,500 ft operating); 2 GRMS vibration. MIL-S-901 Grade B, with a test report
EMC MIL-STD-461 RE102 and CE102 (AC and DC); FCC (AC)

Why source it through CoreTech

  • A local contact in Rishon LeZion, Israel, for quotations and technical questions.
  • Every system is checked by CoreTech's technical team before delivery.
  • Every system comes with a 5-year warranty.
  • RMA cases are handled in Israel, and repairs are carried out in Israel by CoreTech's technical team.
  • Lead times from about a week to a few months, depending on the configuration.

Questions

Common questions.

How many GPUs can the RS4105L22 take?

It is designed for four high-powered GPGPUs, with ten PCIe slots in total.

How much memory does it take?

Up to 3 TB of DDR4 RDIMM/LRDIMM.

What power options does it have?

3000 W at 120/240 VAC 50/60 Hz and 180–350 VDC, or 1620 W at 18–36 VDC. Both are N+1 redundant.

What temperature range does it operate in?

−30 °C to +50 °C, tested to MIL-STD-810 Method 501. The storage range is −40 °C to +85 °C.

Does it meet naval shock requirements?

The datasheet lists MIL-S-901 Grade B, with a test report available.

What is the difference between the RS4105L22 and the RS41110L21?

The RS4105L22 is 22 in deep, designed for four GPGPUs, with ten PCIe slots and up to 15 SSDs, and has AC, HVDC or 18–36 VDC power with N+1 redundancy. The RS41110L21 is 20.7 in deep, designed for two GPGPUs, with eleven slots and up to 20 SSDs, on 1200 W AC, and is rated to +55 °C.

What warranty do the systems have, and who handles RMA?

Every system comes with a 5-year warranty. CoreTech handles RMA cases in Israel, and repairs are carried out in Israel by its technical team.

How long does delivery take?

From about a week to a few months, depending on the configuration.

How do I get a quote in Israel?

Use “Request a quote” on this page, or call +972-73-3224235.
