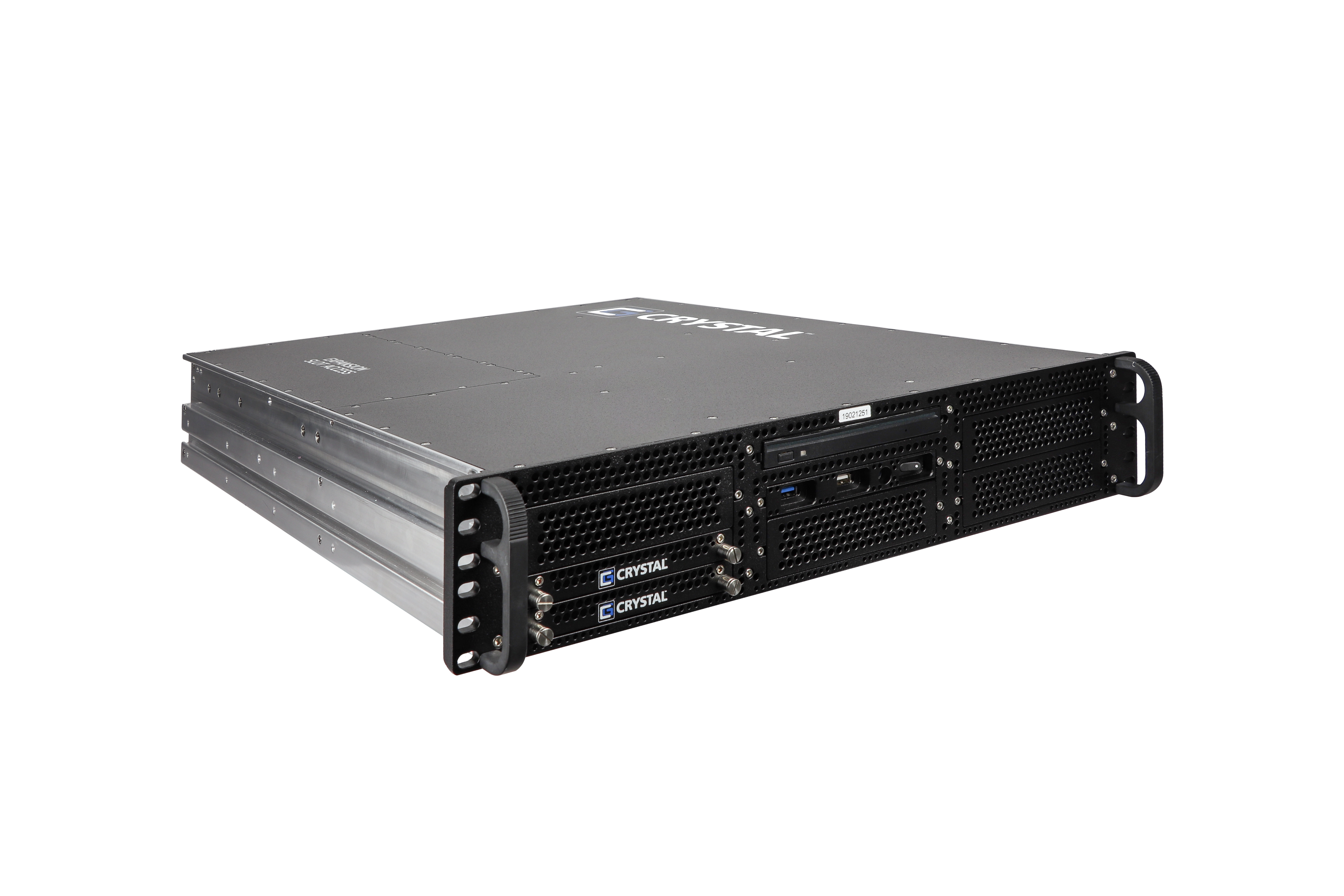

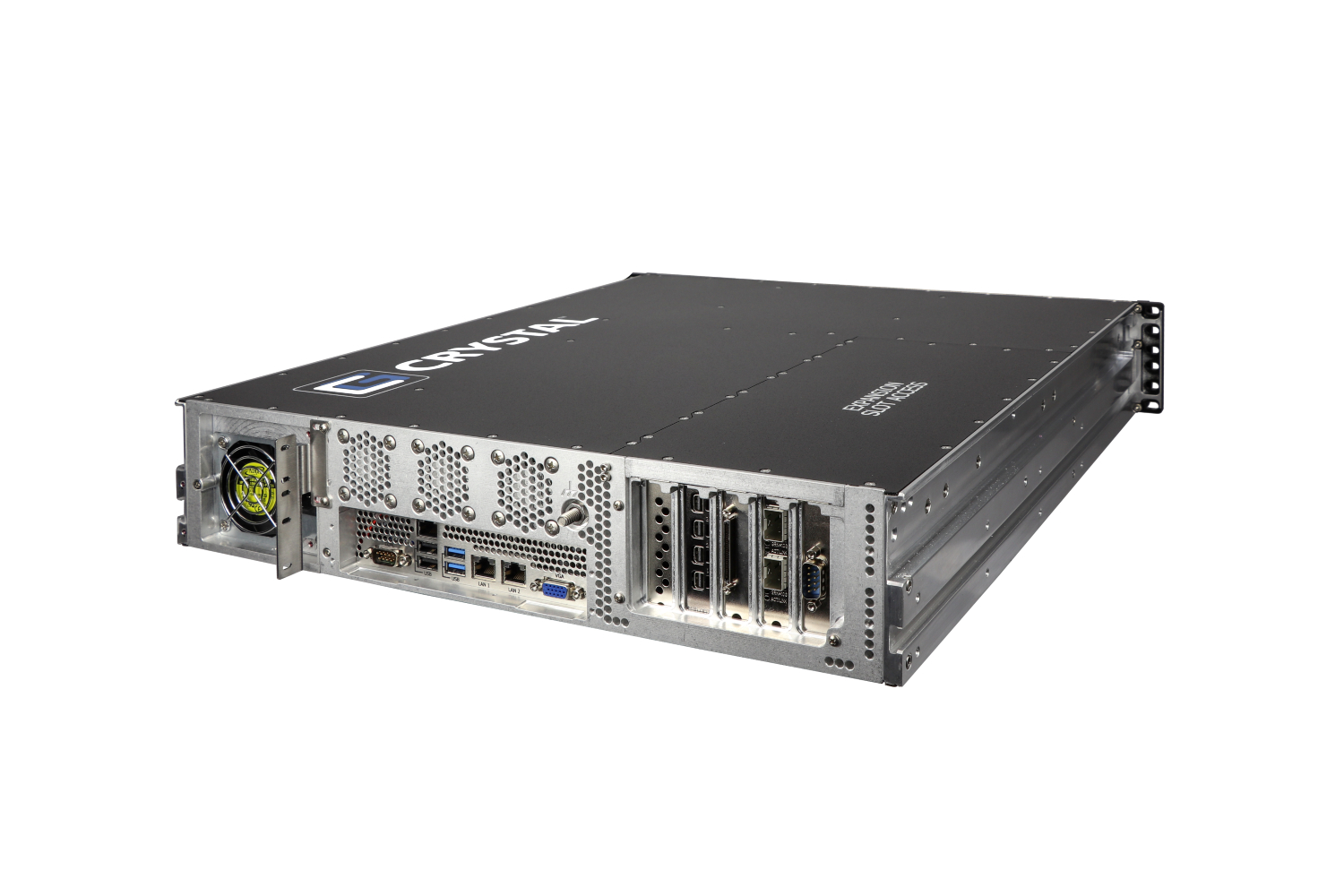

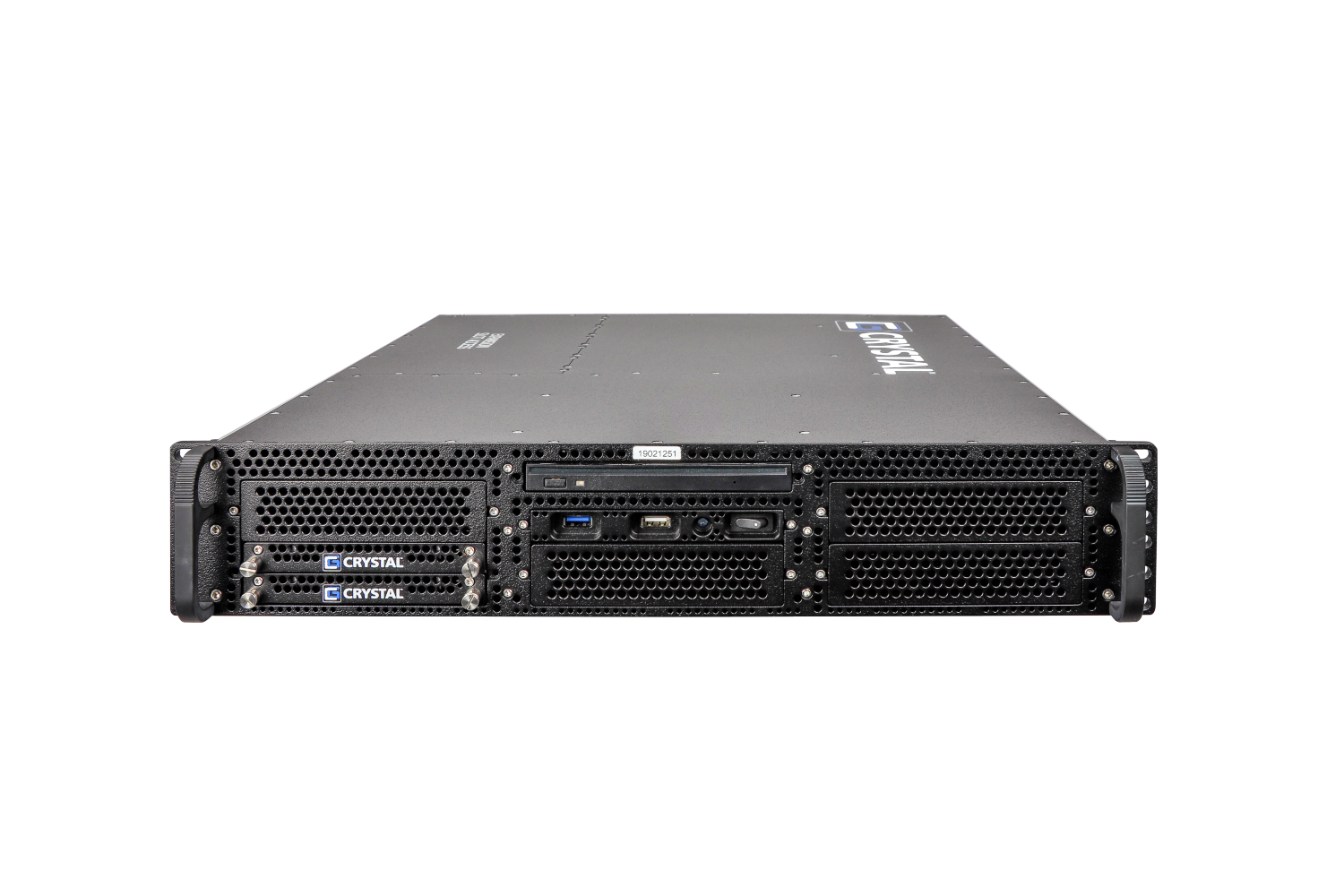

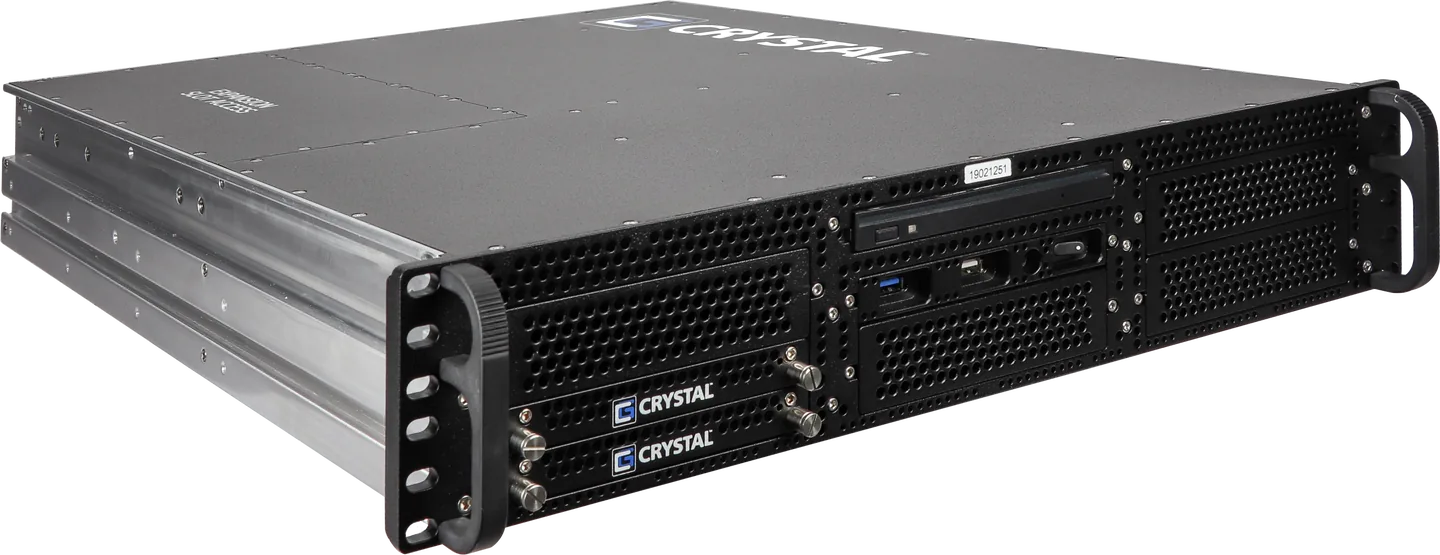

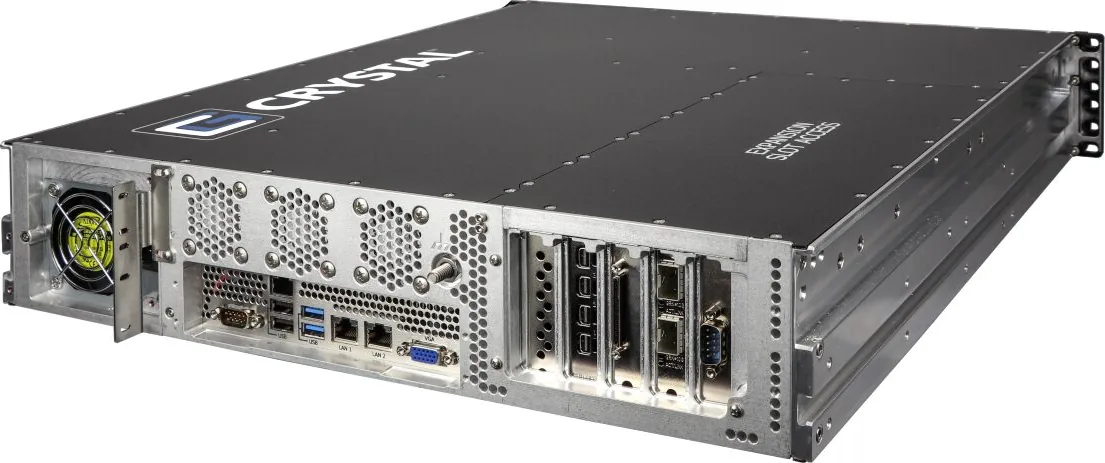

RS255
Rugged 2U Server
Field tested, failsafe and long life performance in extreme conditions.
Overview
About this platform.
As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS255. High-end computing performance in a 2U chassis with a depth under 20” (50.8 cm) fits most any rack space.
Technical detail
Know the platform.
- Light weight aluminum construction – 30-35 lbs.
- Easily mounted– Delrin glides, fixed mount, or Jonathan® rails
- Up to 512 GB of memory
- Rugged 2U, rack mounted 20” depth
- Five removable 3.5” HDD or ten removable 2.5” SSD bays
- Expandable with five low profile slots
- Intel® Xeon® processors
RS255 technical specifications
| Form Factor | 2U |
|---|---|
| Height | 3.5" (8.89cm) |
| Width | 17.5" (44.45cm) (accepts Crystal Slides and Jonathan rails) EIA-310 Compliant |
| Depth | 20" (50.8cm) |
| Weight | 30 - 35 lbs ( 13.61 - 15.88 kgs ) (content dependent) |
| CPU | Intel® Broadwell Xeon® processors; Up to 18 core options per socket (dependent on motherboard) |
| Expansion Slots | Five low profile slots; combinations are configuration dependent |
| External Bays | Option 1: Five removable SATA or SAS 2.5” or 3.5” HDD; Option 2: Ten 2.5” SATA or SAS HDDs; Option 3 (can be combined with HDD option): One CD/DVD/BD (R/W) |
| Memory | 16 GB - 512 GB DDR4 (motherboard dependent) |
| Cooling | Six high speed, high volume fans; CPU temperature controlled |
| Power Supply | Option 1: 600W 120/240VAC W/PFC, 115VAC 400Hz; Option 2: 1200W 1+1 120/240VAC W/PFC, 115VAC 400Hz; Option 3: 1005W 18-36VDC |
| Software Capability | Accepts Windows 10®, VMware®, Linux® or Windows Server 2019® |
| MIL-STD-810, Operational Temperature, Method 501, Procedure I/II | -15°C to +55°C, -40°C to +71°C with select processors |
| MIL-STD-810, Storage, Method 501, Procedure I/II | -55°C to +85°C |
| MIL-STD-810, Shock, Method 516, Procedures I/V | 20g, 11msec—functional shock; 40g, 11msec crash hazard shock |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
