RE1312
Rugged Embedded Computer
Manufactured by
Overview
About this platform.

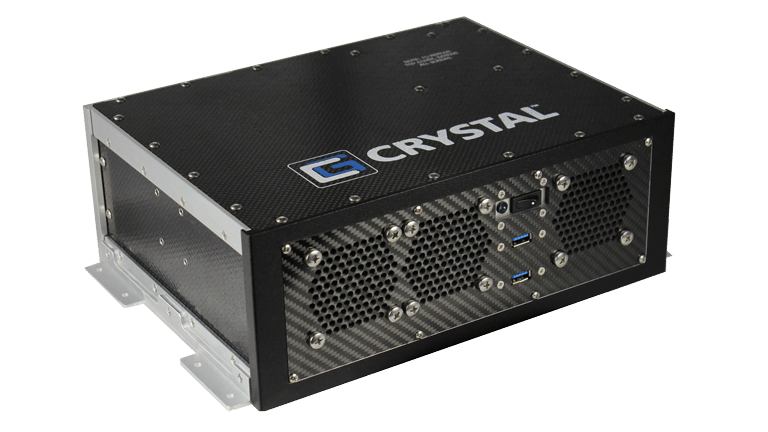

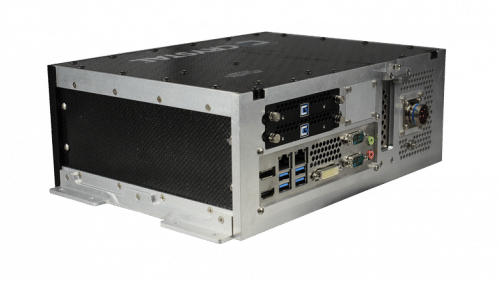

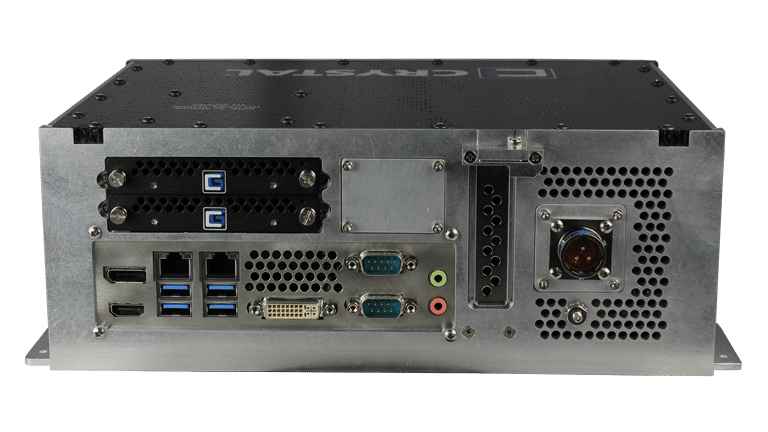

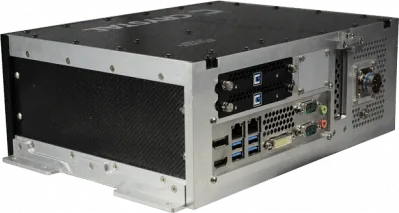

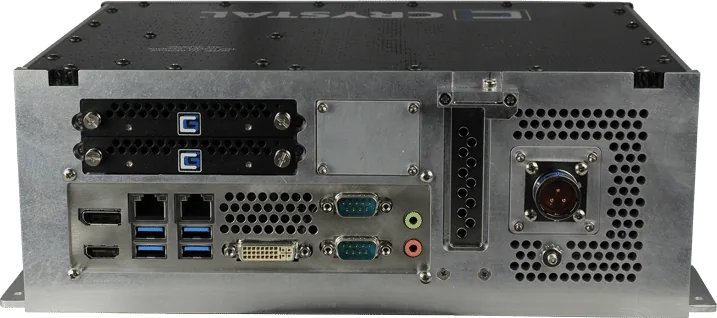

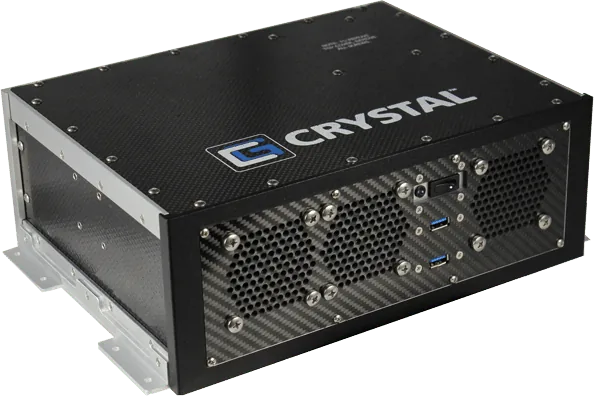

Rugged Embedded Computer
Feature rich Crystal Group Embedded Computer Systems are powerful, compact, and rugged.
Completely and easily configurable, the Embedded product line boasts advanced thermal management and a carbon fiber chassis, are field-tested to withstand shock and vibration, extended temperature ranges, harsh elements and harsh environments.
Crystal Group Embedded Computer Systems follow the Intel® Roadmap to ensure access to the latest, powerful Intel
Technical detail
Know the platform.
- Light weight composite construction – 4.5”H x 12” W x 9”D footprint (7-8 lbs)
- Compact composite construction provides low SWaP
- Xeon®-D CPU technology
- Core i7 CPU options/ up to 16 cores Xeon-D
- 18-36 VDC power
- Up to 64GB unbuffered, non ECC DDR4 1.2V SO-DIMM or 128GB ECC DDR4 with Xeon-D offering
- Two 15mm SSD or three 7mm SSD storage options, removable drives
- MIL-STD-461 CE102, RE102 compliant
- Bulk head or tray mounted options
RE1312 technical specifications
| Height | 4.5" (11.43cm) |
|---|---|
| Width | 12" (30.48cm) |
| Depth | 9" (22.86cm) excluding connectors |
| Weight | 7.52 lbs ( 3.41 kgs ) |
| Power | 55-80W with select configurations, CPU dependent |
| CPU Architecture | Intel® Xeon® D and Core i7 CPU options |
| Expansion Slots | One PCIe 3.0x16 low profile expansion bay |
| Cooling | Three high reliability 60mm fans |
| Internal Expansion Slots | Up to three SATA 2.5” SSD (externally removable) |
| Memory | Up to 64GB unbuffered, non ECC DDR4 1.2V SO-DIMM or 128GB ECC DDR4 with Xeon D |
| Power Supply | 18-36 VDC |
| Mounting | Tray or bulkhead mounted using ears supplied |
| Software Capability | Windows® 10, RHEL® 6.6/6.7/7/7.1, SUSE SLES® 11, Ubuntu® 16, or Centos® 7.1 VMware® |
| MIL-STD-810, Operational Temperature | -40°C to +60°C |
| MIL-STD-810, Storage, Method 501, Procedure I/II | -40°C to +85°C |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
