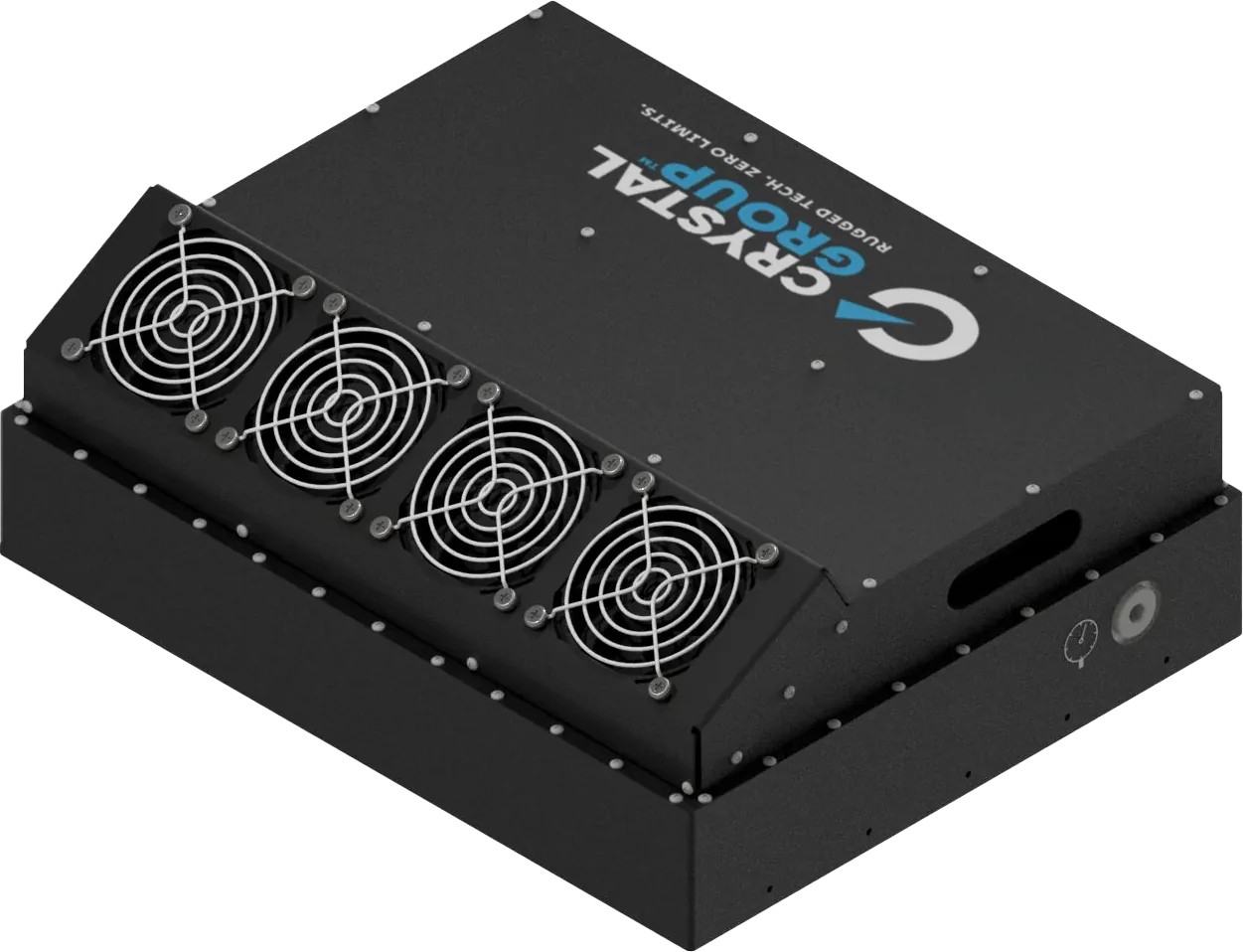

RE3423M
Sealed Server
High-performance compute in a completely sealed chassis.
Manufactured by
Overview
About this platform.
The RE3423M is third party certified to IP68 water and dust ingress protection levels with up to 220 watts of combined CPU and GPU power without sacrificing performance at 65°C. This purpose designed chassis enables demanding applications to be deployed into harsh elements and extreme environments. The custom internal heatsinks developed for the RE3423M allow industry leading operation for mission equipment in high temperature environments.
The RE3423M is currently configured with Intel® Xeon® Scalable processor and NVIDIA professional graphics card for high reliability in the field. Crystal Group’s embedded computer systems align with industry processor roadmaps to ensure access to the latest in long life, powerful processors.
Technical detail
Know the platform.
- IP68 dust and water-tight (tested for 24 hours continuous immersion at >1 meter depth)
- 40°C to +65°C operational temperature
- Intel Xeon CPU; up to 20 cores and 150W
- Low-profile GPU up to 70W
- Designed to MIL-STD-1275E
- Up to three 2.5” SATA or two U.2 NVMe drives
RE3423M technical specifications
| Height | 5.80” (14.7 cm) |
|---|---|
| Width | 15.75” (40.0 cm) max |
| Depth | 12.60” (32.0 cm) over body, 13.35” (33.9cm) max including MIL-CIRC connectors |
| Weight | 33 lbs. (15.0 kg) max with all drives populated and one card installed |
| Power Supply | 18-36VDC MIL-STD-1275, MIL-STD-461 1 |
| CPU | Up to 20 cores, 150W TDP |
| Memory | Up to 512GB DDR4 ECC RDIMM |
| Internal Expansion Slots | One PCIeX16 low profile, single slot, full length card, up to 70W TDP |
| Removable Drives and I/O (Option 1) | Two non-removable NVME SSDs |
| Removable Drives and I/O (Option 2) | Three non-removable SATA SSDs |
| Removable Drives and I/O (Option 3) | Inquire about sealed removable drive options |
| Mounting | Mounted from base flanges |
| Cooling | External heat sink cooled by four external IP68 rated fans |
| MIL-STD-810, Operational Temperature, Method 501, Procedure I/II | -40°C to +65°C (Horizontal Orientation), +63°C (Vertical Orientation), unthrottled full performance |
| IEC 60529 Ingress Protection | IPX8 Immersion for 24 hours at 1 meter, IP6X Dust for 8 hours with vacuum |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
