CoreTech / Embedded systems

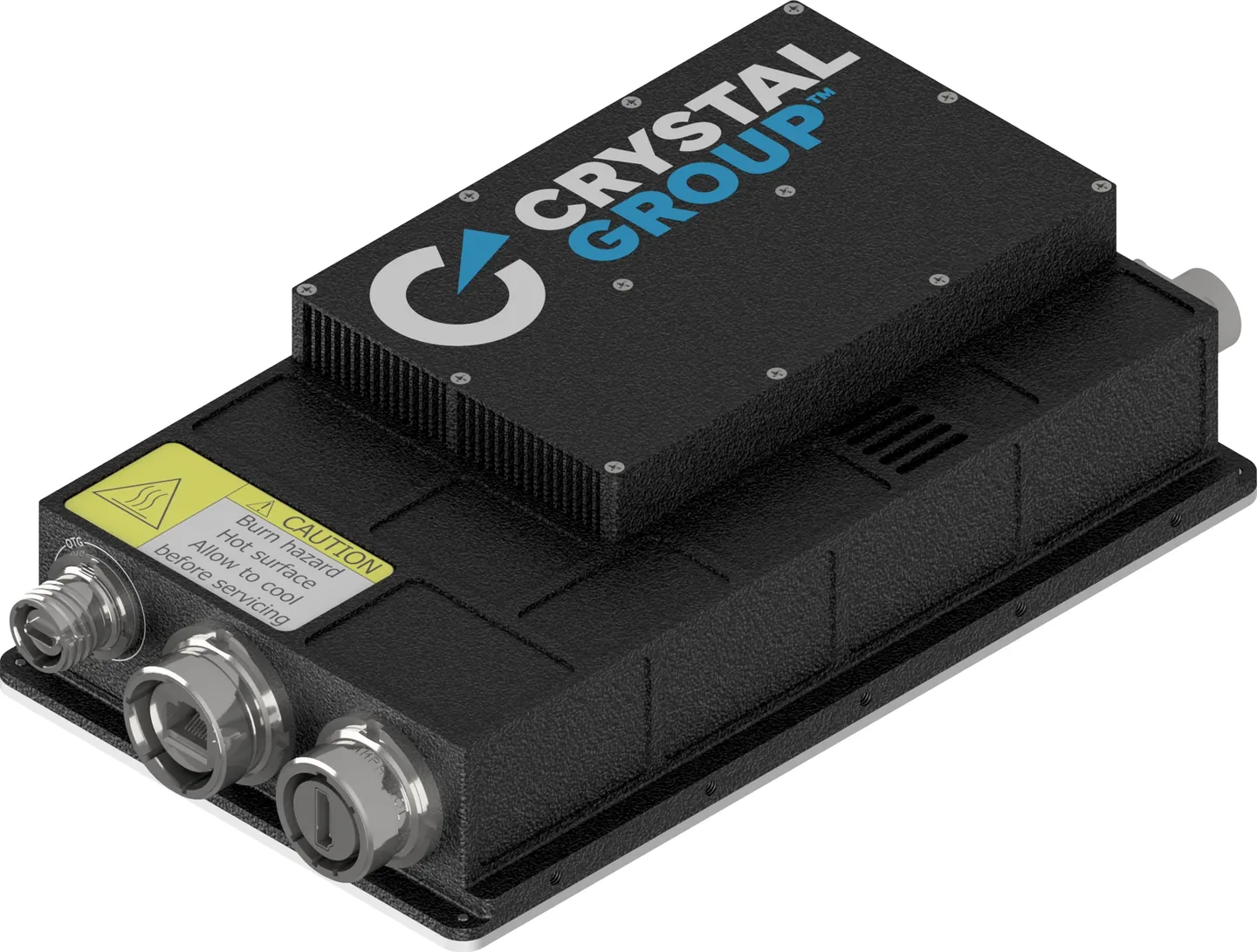

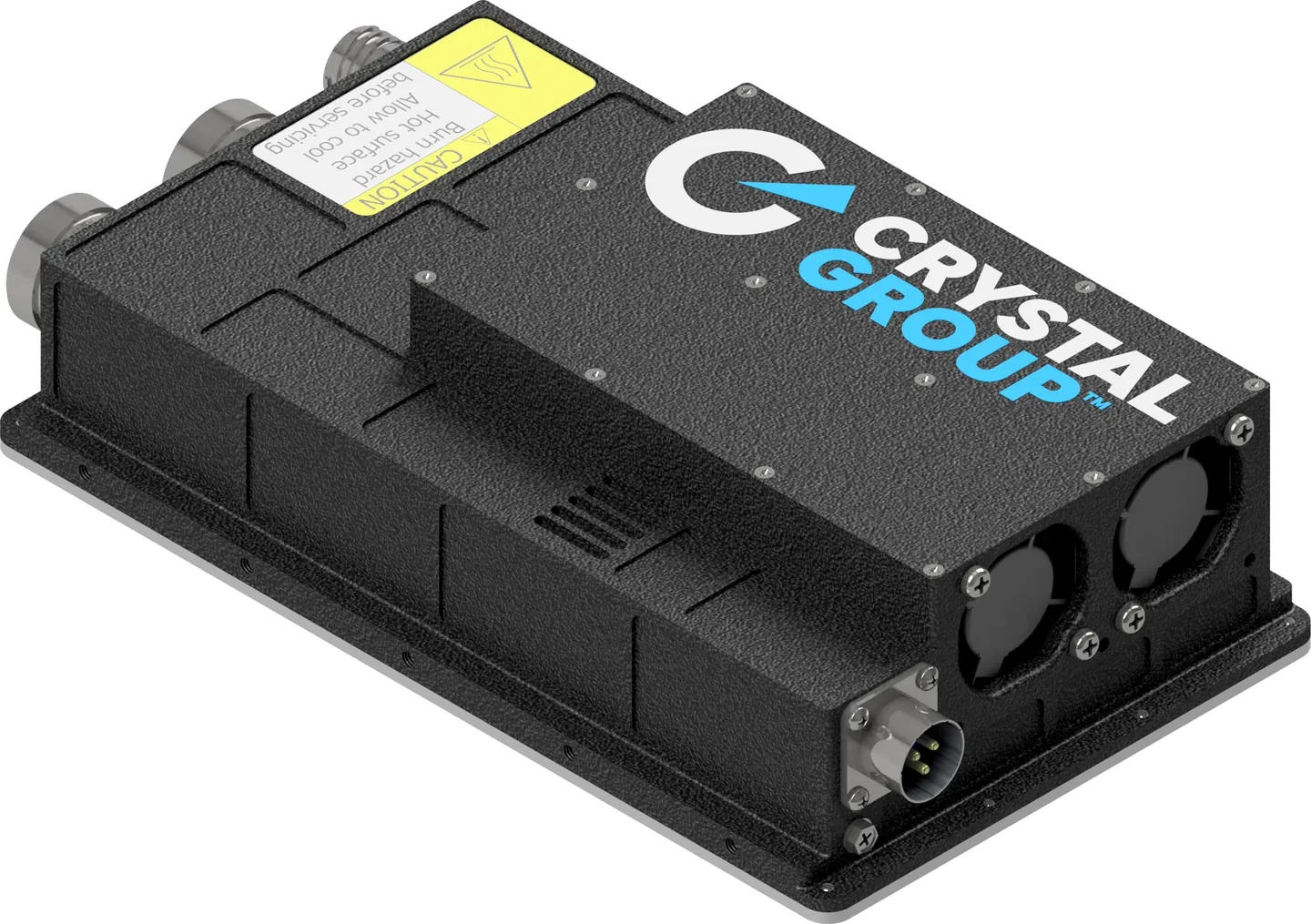

RE1600M Rugged Sealed AI Edge Computer

A small, sealed computer for AI inferencing at the edge, built around the NVIDIA Jetson AGX Orin module, with 248–275 TOPS depending on configuration. IP68 sealed, 4.5 lb (2.04 kg), and powered from 18–36 VDC. Built by Crystal Group, designed to MIL-STD-810, and supplied in Israel by CoreTech.

Download datasheet (PDF)

Manufactured by Crystal Group

Built for Naval systems

AI module
NVIDIA Jetson AGX Orin
AI performance
248–275 TOPS
Sealing
IP68
Weight
4.5 lb (2.04 kg)

Applications

Where it fits.

The RE1600M is built for decision-making at the edge: AI image recognition and computer vision run on the platform itself, on video from visible-light or infrared cameras. It is IP68 sealed, shock resistant and engineered for amphibious operations, and it is small and light enough for platforms where space and weight are tight.

  • Unmanned surface vessels (USVs)
  • Mobile vehicle platforms
  • Video processing and AI inferencing
  • AI image recognition and computer vision on visible-light or infrared video

Technical detail

Know the platform.

RE1600M technical specifications

Height 2.62” (66.55 mm)
Width 5.75” (146.05 mm)
Depth 9.75” (247.65 mm)
Weight 4.5 lbs (2.04 kg)
Environmental Standards Designed to MIL-STD-810

Configuration affects weight and available options. Confirm your required configuration with CoreTech.

Configuration

Choose the right configuration.

Tell us about your cameras, your displays and how the unit will be cooled on the platform, and we will come back with a configuration and a quotation.

AI module NVIDIA Jetson AGX Orin, Ampere architecture with 2048 CUDA cores and 64 Tensor Cores; 248–275 TOPS depending on configuration
Cooling Passive up to +55 °C, air-over conduction up to +60 °C, forced air up to +65 °C, or liquid (platform dependent)
I/O Modular I/O, with multiple display outputs
Power 18–36 VDC
Mounting Small form factor with a modular mounting receiver
Size and weight 2.62 in high, 5.75 in wide, 9.75 in deep (66.55 × 146.05 × 247.65 mm); 4.5 lb (2.04 kg)
Environment IP68 sealed and shock resistant; designed to MIL-STD-810

Why source it through CoreTech

  • A local contact in Rishon LeZion, Israel, for quotations and technical questions.
  • Every system is checked by CoreTech's technical team before delivery.
  • Every system comes with a 5-year warranty.
  • RMA cases are handled in Israel, and repairs are carried out in Israel by CoreTech's technical team.
  • Lead times from about a week to a few months, depending on the configuration.

Questions

Common questions.

How much AI performance does the RE1600M deliver?

Between 248 and 275 TOPS, depending on configuration, from an NVIDIA Jetson AGX Orin module with 2048 CUDA cores and 64 Tensor Cores.

Which cameras can it work with?

It applies AI inferencing to video from visible-light or infrared cameras.

Is it sealed against water and dust?

Yes. It is IP68 rated and engineered for amphibious operations.

What is the maximum operating temperature?

It depends on the cooling: up to +55 °C passive, +60 °C with air-over conduction and +65 °C with forced air. With liquid cooling it depends on the platform.

What is the difference between the RE1600M and the RE1900M?

Both are IP68 sealed computers built on the NVIDIA Jetson AGX Orin, with 248–275 TOPS. The RE1600M is smaller and lighter, at 4.5 lb (2.04 kg), and works with passive, conduction, forced-air or liquid cooling. The RE1900M uses the Industrial version of the Orin module, is air cooled for −40 °C to +70 °C, weighs 7.0 lb (3.18 kg), and comes with 2 × 10GbE, USB-C and 1 TB of NVMe storage.

What power does it need?

18–36 VDC.

What warranty do the systems have, and who handles RMA?

Every system comes with a 5-year warranty. CoreTech handles RMA cases in Israel, and repairs are carried out in Israel by its technical team.

How long does delivery take?

From about a week to a few months, depending on the configuration.

How do I get a quote in Israel?

Use “Request a quote” on this page, or call +972-73-3224235.
