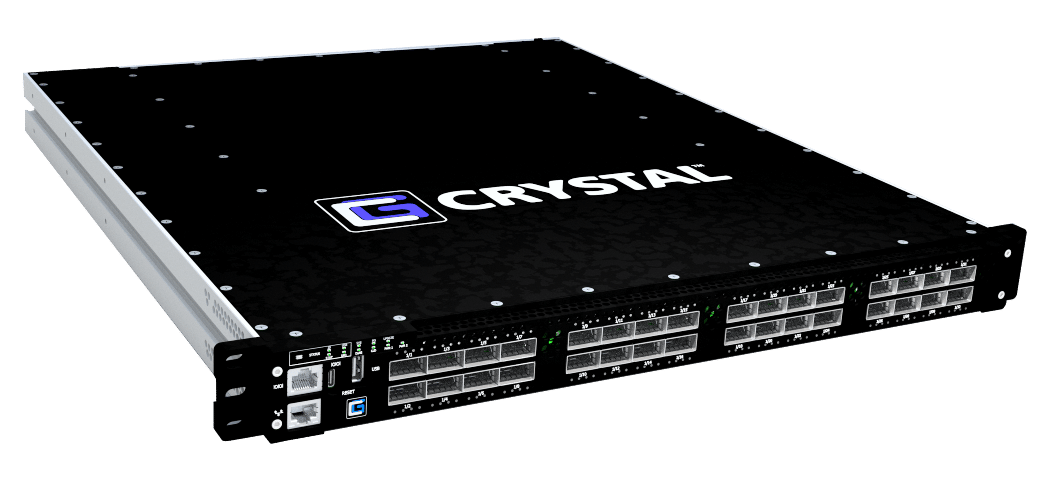

RCS7850-24/38/48
Rugged Switch
Overview
About this platform.
Bring powerful network speed to edge applications
Equipped with 24-48 QSFP-28 ports, this unit uses fiber optics to deliver transmission speeds of 100Gb. When needed, up to 12 of these switches can be stacked for easy management and an aggregated bandwidth of up to 9.6Tb per second.
This 19” deep switch—based on the CommScope ICX-7850 series—provides enterprise-class solutions for small or medium-size applications, such as field radar systems, that depend on a reliable digital backbone to meet interface and bus speeds.
Housed in a rugged, lightweight, and compact enclosure, the RCS7850-24/32Q/48 provides intelligent, scalable, edge technology with plug-and-play functionality and MIL-SPEC environmental performance to survive harsh environments, extreme temperatures, and brutal shock and vibration.
Technical detail
Know the platform.
RCS7850-24/38/48 technical specifications
| Models | RCS7850-32Q, RCS7850-48FS, RCS7850-48F, RCS7850-48C |
|---|---|
| Height | 1U |
| Width | 17.46” (433.5 mm) |
| Depth | 20.8” (528.32 mm) |
| Weight | 17.5-20.5 lbs |
| Cooling | Forced air convection via internal, high-reliability fans |
| Mounting | Glides or fixed; mounts in standard EIA-310 rack |
| Power Supply | AC: 100-240VAC, 50-60 Hz, auto-switching, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102; DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102 |
| Downlink Ports | 32Q: 32 40/100Gbps QSFP28 (up to 8 usable for stacking); 48FS: 48 1/10Gbps SFP+; 48F: 48 1/10/25Gbps SFP28; 48C: 48 1/10Gbps 10GBASE-T RJ45 |
| Layer 3 Routing | Basic static routing, RIP. Add on license enables advanced L3 routing (OSPF, BGP, VRRP, PIM, PBR, VRF features) |
| Stacking/Uplink Ports | 8 40/100Gbps QSFP28 |
| Stacking Density / Distance | 12 / 10 km |
| Switching Capacity (Full Duplex) | 32Q: 6.4 Tbps; 48FS: 2.56 Tbps; 48F: 4.0 Tbps; 48C: 2.56 Tbps |
| Operational Temperature, Method 501/502 Procedure I/II | -40°C to +55°C |
| Vibration, Method 514, Procedure I | 3 GRMS, 5-2000Hz, 60 min/axis |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
