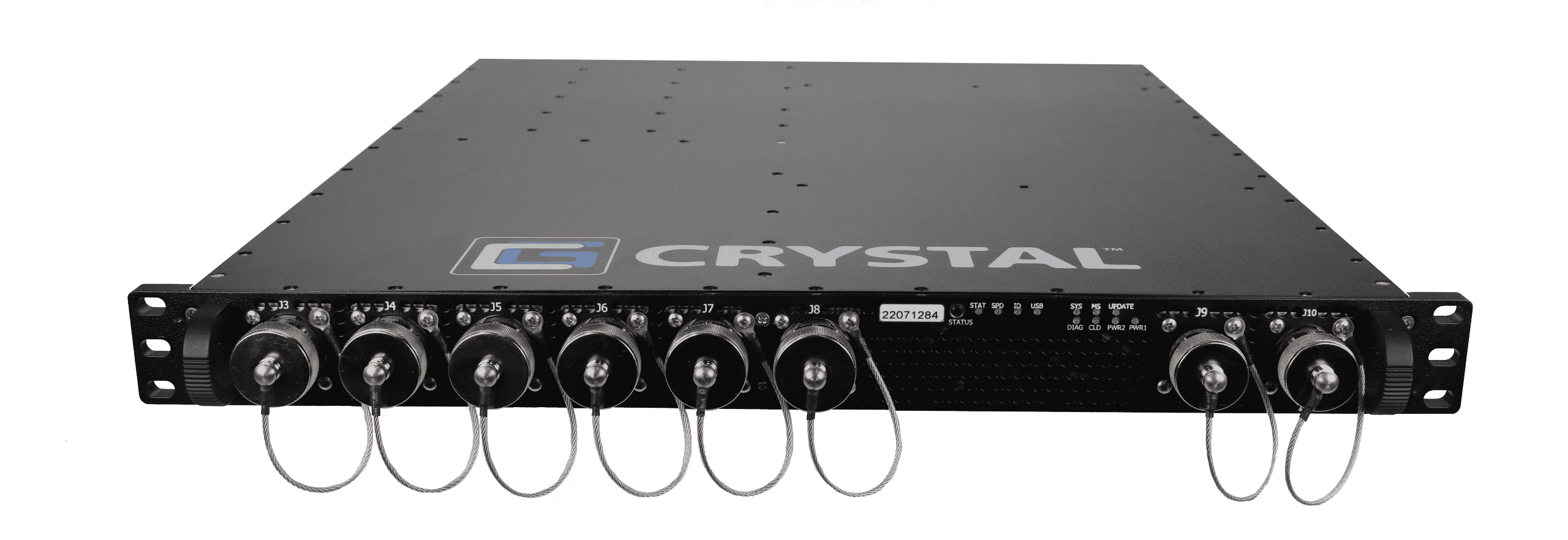

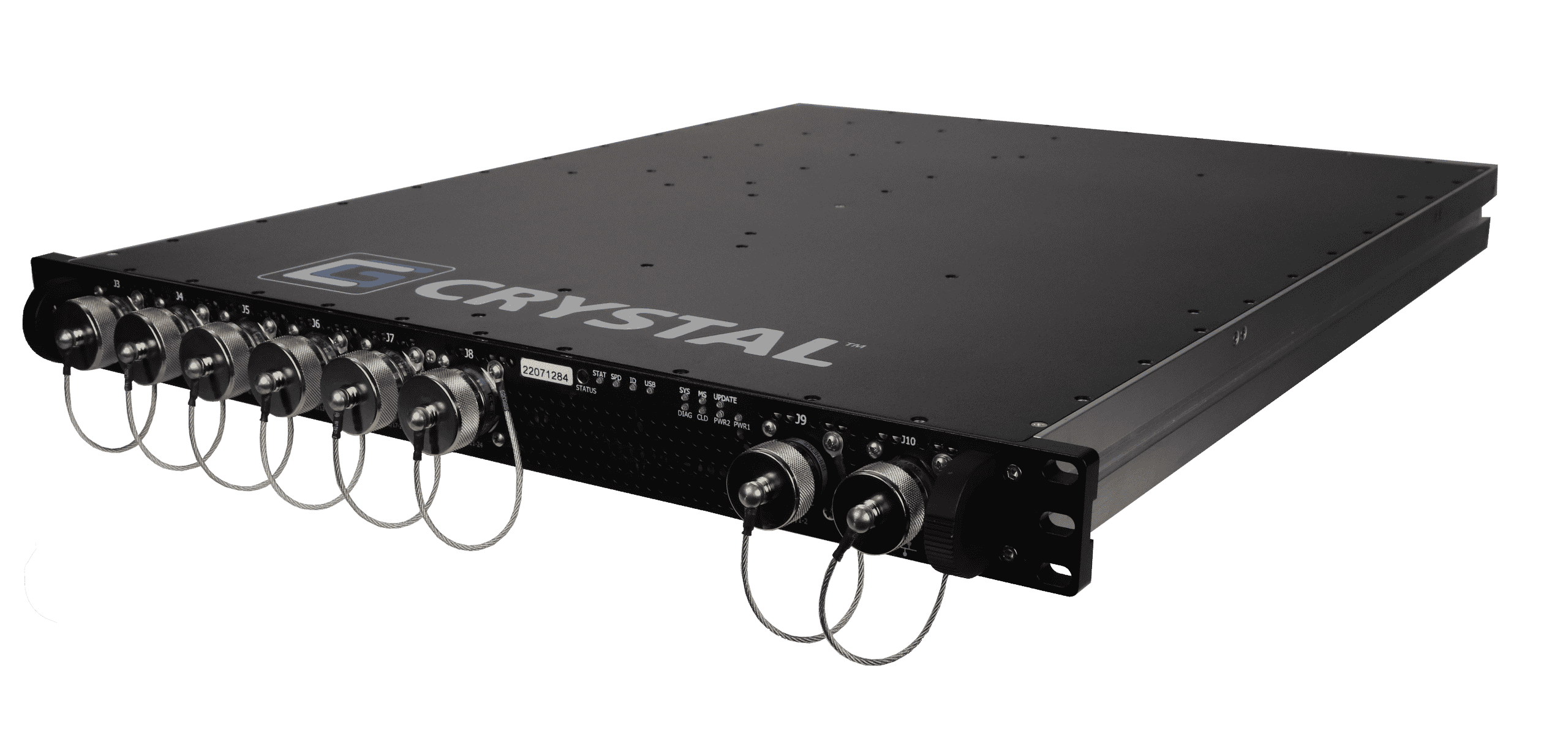

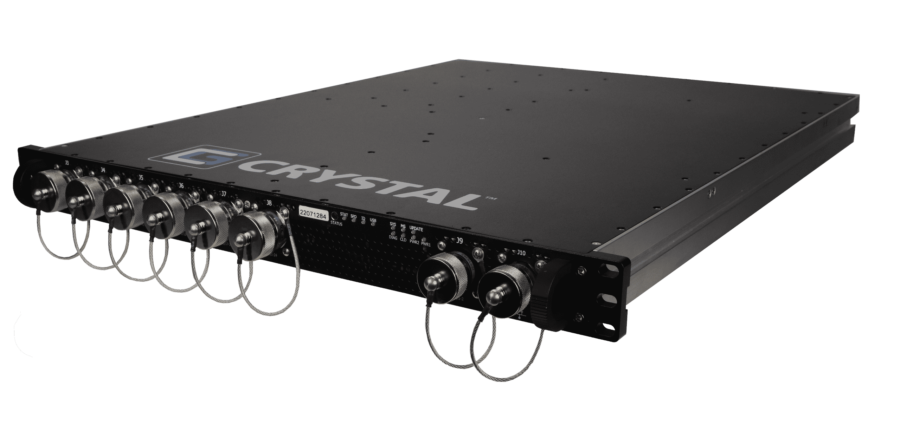

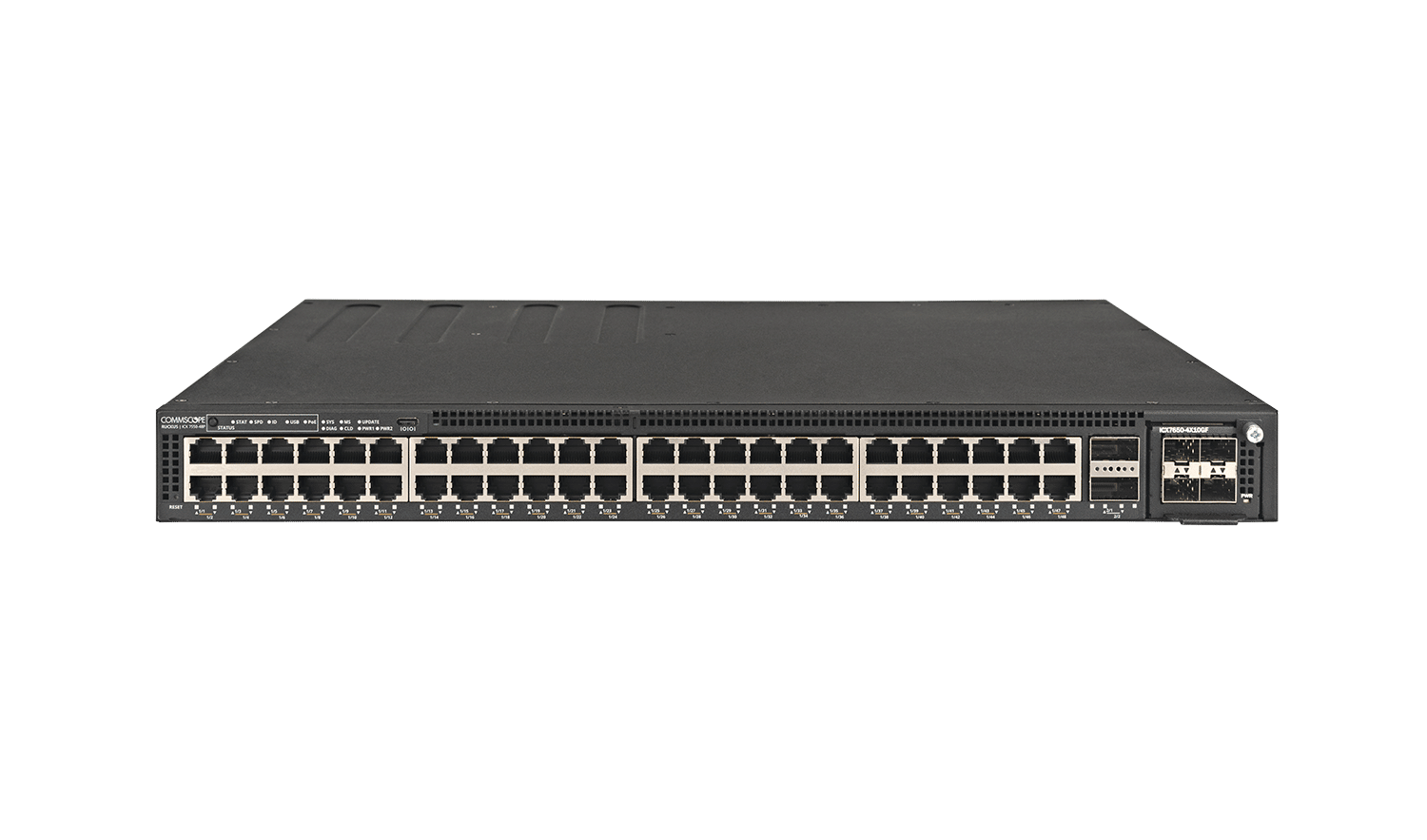

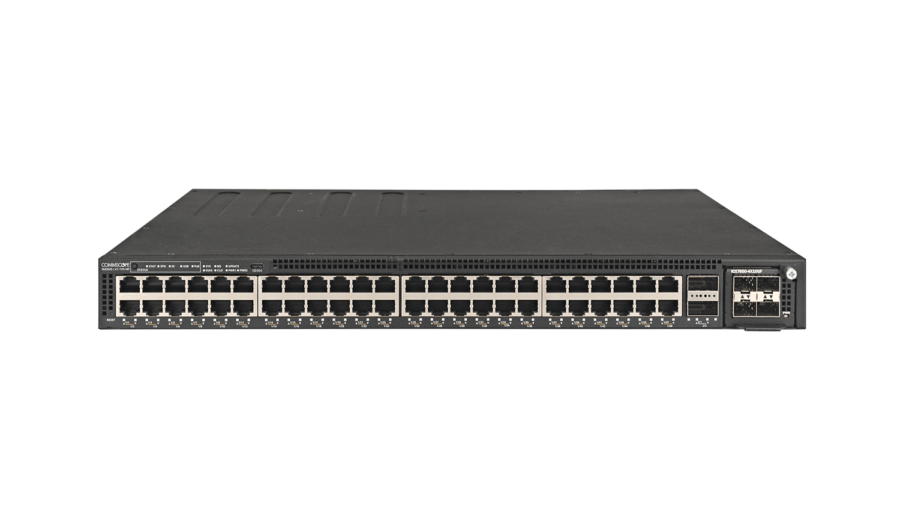

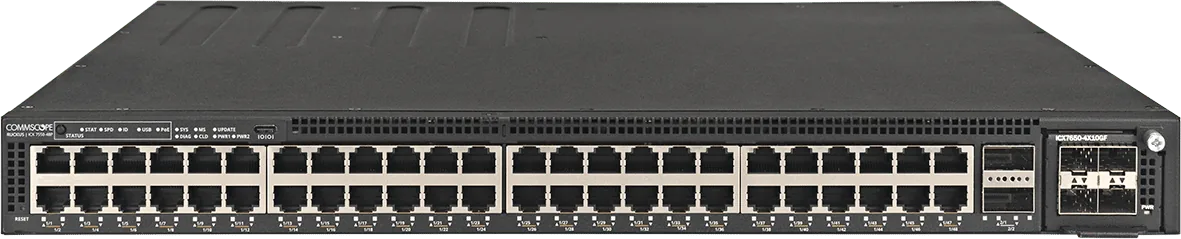

RCS7550-24/48
Rugged switche
Overview
About this platform.
Rugged RCS7550 switches bring intelligent, scalable, edge switch technology with plug-and-play functionality and MIL-SPEC environmental performance to the most demanding military and industrial applications in air, on land, and at sea. These 16” depth units—based on the Ruckus® ICX® 7550 series—are enterprise-class, stackable LAN solutions for small and medium size applications. These bestin-class switches are housed in rugged, lightweight, and compact enclosures, such as transit cases or 19-inch racks with strain-hardened aircraft aluminum, designed to survive extreme environments, temperatures, and high shock and vibration
Technical detail
Know the platform.
- Rugged RCS7550
- switches bring intelligent, scalable, edge switch technology with plug-and-play functionality and
- MIL-SPEC environmental performance to the most demanding military and industrial applications
- in air, on land, and at sea. These 16” depth units—based on the Ruckus® ICX® 7550 series—are
- enterprise-class, stackable LAN solutions for small and medium size applications. These bestin-class switches are housed in rugged, lightweight, and compact enclosures, such as transit
RCS7550-24/48 technical specifications
| Models | RCS7550-24C, RCS7550-24F, RCS7550-48C, RCS7550-48F |
|---|---|
| Height | 1U |
| Width | 17.32” (43.99 cm) |
| Depth | 18.14” (461 mm) |
| Weight | 13.5-16.3 lbs. (6.1-7.4 kg kg) |
| Cooling | Forced air convection via internal, high-reliability fans |
| Mounting | Glides or fixed; mounts in standard EIA-310 rack |
| Power Supply | AC: 100-240VAC, 50-60 Hz, auto-switching single or 1+1 redundant; DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102 |
| Downlink Ports | 24C: 24 RJ-45 10/100/1000 Mbps; 24F: 24 SFP+ 1/10 Gbps; 48C: 48 RJ-45 10/100/1000 Mbps; 48F: 36 100/1000 Mbps SFP and 12 1/10 Gbps SFP+ |
| 1x Modular Slot | Possible configurations include: 1-port 100GbE QSFP28, 2-port 40GbE QSFP+, or 4-port 1/10GbE SFP+ |
| Layer 3 Routing | Basic static routing, RIP. Add on license enables advanced L3 routing (BGP, OSPF, VRRP, PIM, PBR features) |
| Stacking Bandwidth | 24C/48C: 960 Gbps; 24F/48F: 2.4 Tbps |
| Stacking/Uplink Ports | 24C/48C: 2x 40 Gbps QSFP+; 24F/48F: 2x 40/100 Gbps QSFP28 |
| Stacking Density / Distance | 12 / 10 km |
| Switching Capacity (full duplex) | 24C: 368 Gbps; 24F: 1080 Gbps; 48C: 416 Gbps; 48F: 912 Gbps |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
