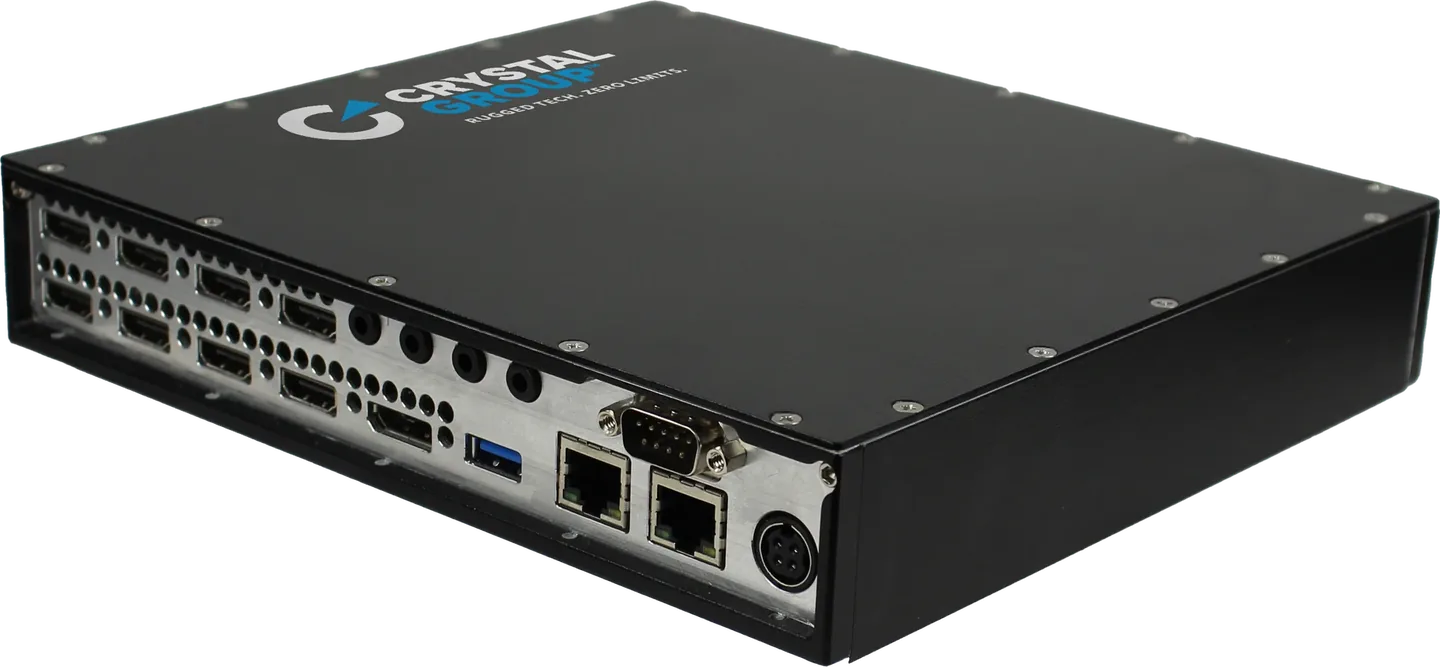

RVA6152 Rugged 4K Video Encoder and Recorder
A rugged multi-4K video encoder that captures four HDMI inputs and streams or records them in H.264 over a standard 1GbE network, with four HDMI pass-through outputs. Developed by Crystal Group in collaboration with Matrox Video, stand-alone or rack-mounted at half a rack unit wide, and supplied in Israel by CoreTech.
Manufactured by
- Inputs
- 4 × HDMI
- Capture
- 4 × 4K at 60 Hz
- Codec
- H.264 (AVC)
- Noise
- About 25 dB
Applications
Where it fits.
Video from sensors and cameras is only useful if it reaches the people who need it, in time. The RVA6152 captures several 4K channels at once and streams and/or records them in real time over standard 1GbE networks, and its plug-and-play design fits into existing infrastructure.
- Active combat operations
- Real-time oil rig monitoring
- Live, virtual and constructive training on land, in the air or at sea
Technical detail
Know the platform.
RVA6152 technical specifications
| Acoustic noise | ~25 dB at full stream/record capacity |
|---|---|
| Form factors | Stand-alone appliance |
| Formats (Codecs) | Video: H.264/MPEG-4 Part 10 (AVC) |
| Power supply | 100-240 VAC in, 12 VDC out, 60W |
| Product dimensions | 8.53 x 7.52 x 1.68 in (21.7 x 19.1 x 4.3 cm) |
| Color space capture | RGB and YUV 8- and 10-bit support |
| Network connector | 2x RJ45 with status LED indicators |
| Video input | 4x HDMI (Type A) with audio support |
| Video output/Pass-through | 4x HDMI (Type A) with audio support |
| Video monitoring output | 1x DisplayPort 1.1 |
| Audio input | 4x HDMI digital LPCM two-channel stereo audio |
| Audio output | 4x HDMI digital LPCM two-channel stereo audio |
| MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II: | -10°C to +50°C, -40°C operational with SSD |
| MIL-STD-810, Storage, Method 501, Procedure I/II: | -30°C to +75°C |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
Configuration
Choose the right configuration.
Tell us how many video channels you need to stream or record, and where they go, and we will come back with a configuration and a quotation.
| Video inputs | 4 × HDMI (Type A) with audio |
|---|---|
| Outputs | 4 × HDMI (Type A) pass-through with audio, plus 1 × DisplayPort 1.1 monitoring output |
| Capture | Four 4K HDMI inputs, captured at up to 4096 × 2160 and 60 Hz; RGB and YUV, 8- and 10-bit |
| Encoding | H.264/MPEG-4 AVC video; AAC-LC and HE-AAC v1/v2 audio |
| Recording | MP4, MOV or fMP4, to a shared network drive or NAS, or to USB storage (2 × USB 2.0 front, 1 × USB 3.0 rear); scheduled by start time, duration, file length and frequency |
| Streaming | RTSP, RTP/RTCP, SRT, RTMP, MPEG-2 TS over UDP and HLS; unicast, multi-unicast and multicast |
| Network | 2 × RJ45 1GbE (one for control and streaming, one for streaming only); IPv4 and IPv6; control over HTTPS |
| Audio | 4 × 3.5 mm analog stereo inputs, mic in and headphone out, plus audio over HDMI |
| Power | 100–240 VAC adapter to 12 VDC, 60 W, with a DIN4 locking connector |
| Form factor | Stand-alone or 1U half-rack; 8.53 × 7.52 × 1.68 in (21.7 × 19.1 × 4.3 cm); about 25 dB at full stream and record load |
| Environment | Operating −10 °C to +50 °C, or −40 °C with SSD; storage −30 °C to +75 °C; MIL-STD-810 shock 40 G and vibration 4.7 G, with test reports; designed to meet IEC/EN 60945 |
Why source it through CoreTech
- A local contact in Rishon LeZion, Israel, for quotations and technical questions.
- Every system is checked by CoreTech's technical team before delivery.
- Every system comes with a 5-year warranty.
- RMA cases are handled in Israel, and repairs are carried out in Israel by CoreTech's technical team.
- Lead times from about a week to a few months, depending on the configuration.
Questions
Common questions.
How many 4K channels can the RVA6152 handle?
Four 4K HDMI channels at up to 4096 × 2160 and 60 Hz, streamed and/or recorded at the same time over standard 1GbE networks.
Which streaming protocols does it support?
RTSP, RTP/RTCP, SRT, RTMP, MPEG-2 TS over UDP and HLS, as unicast, multi-unicast or multicast.
Where can it record?
To a shared network drive or NAS, or to a USB flash drive or external hard drive, in MP4, MOV or fMP4. Recordings can be scheduled by start time, duration, file length and frequency.
How loud is it?
About 25 dB at full stream and record capacity.
What is the difference between the RVA6152 and the RVA3408T/R?
The RVA6152 is a video encoder: it captures up to four 4K HDMI channels and streams or records them in H.264. The RVA3408T/R is a KVM extender, so operators can work on computers that sit elsewhere.
What warranty do the systems have, and who handles RMA?
Every system comes with a 5-year warranty. CoreTech handles RMA cases in Israel, and repairs are carried out in Israel by its technical team.
How long does delivery take?
From about a week to a few months, depending on the configuration.
How do I get a quote in Israel?
Use “Request a quote” on this page, or call +972-73-3224235.
