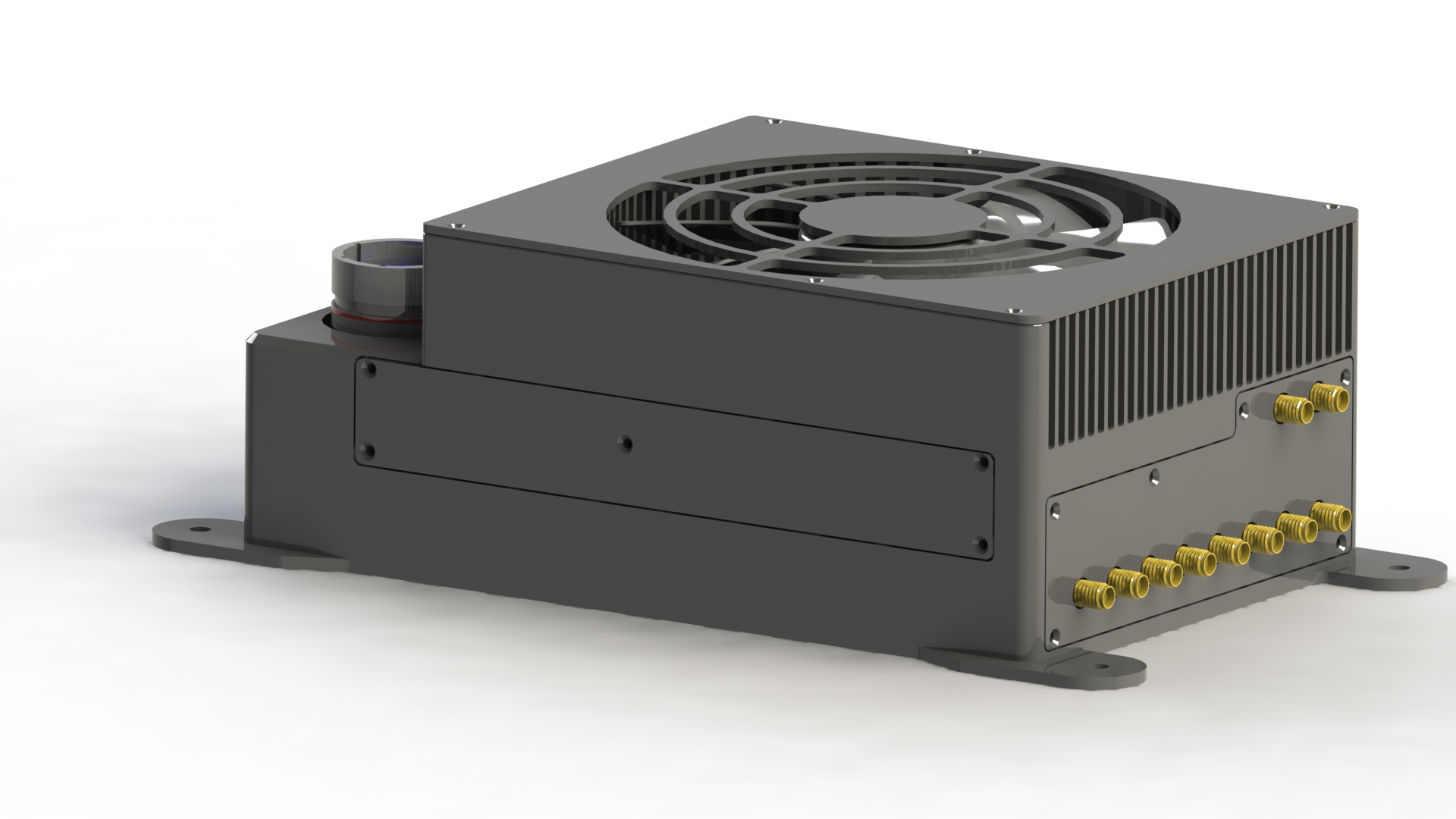

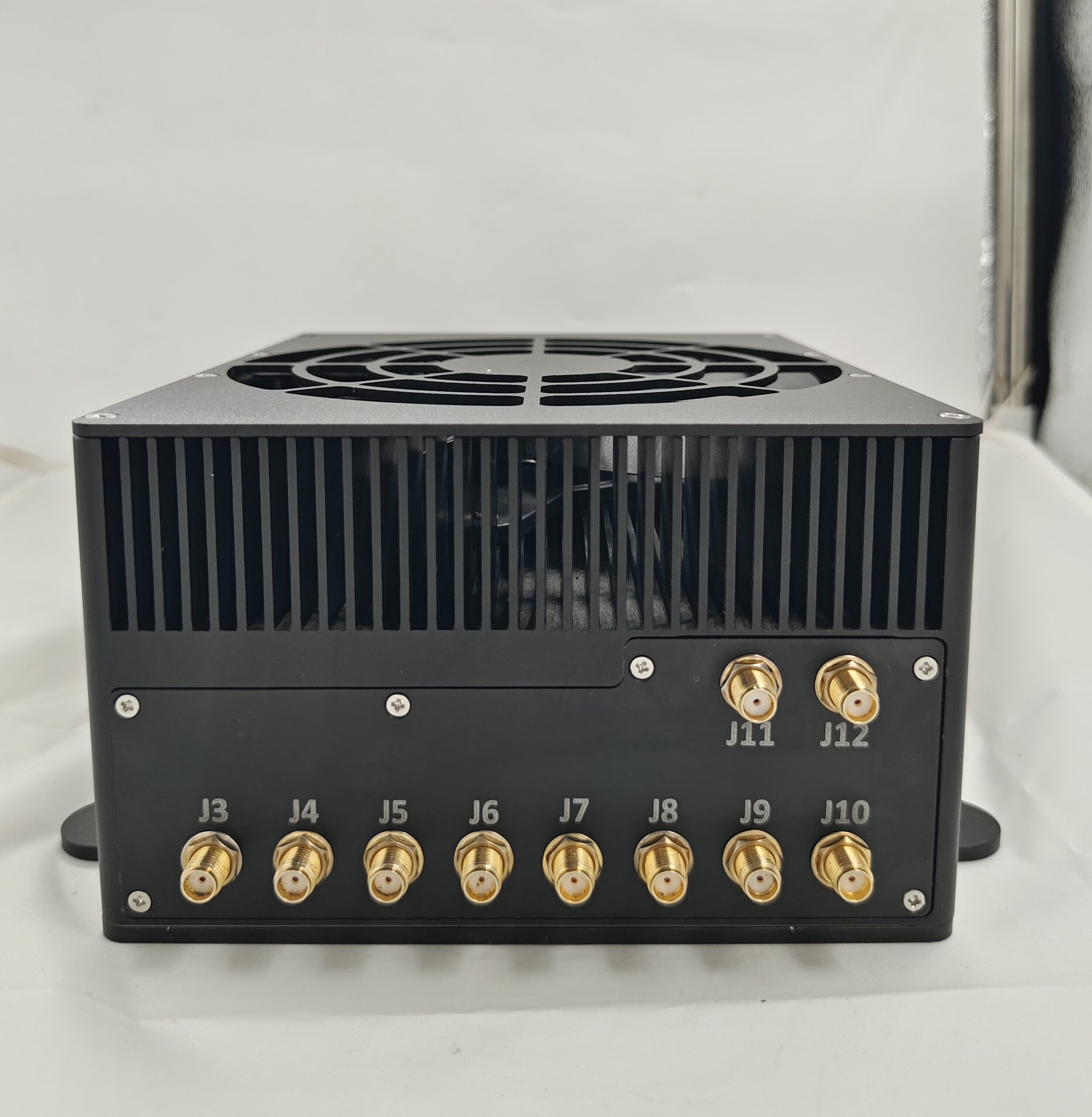

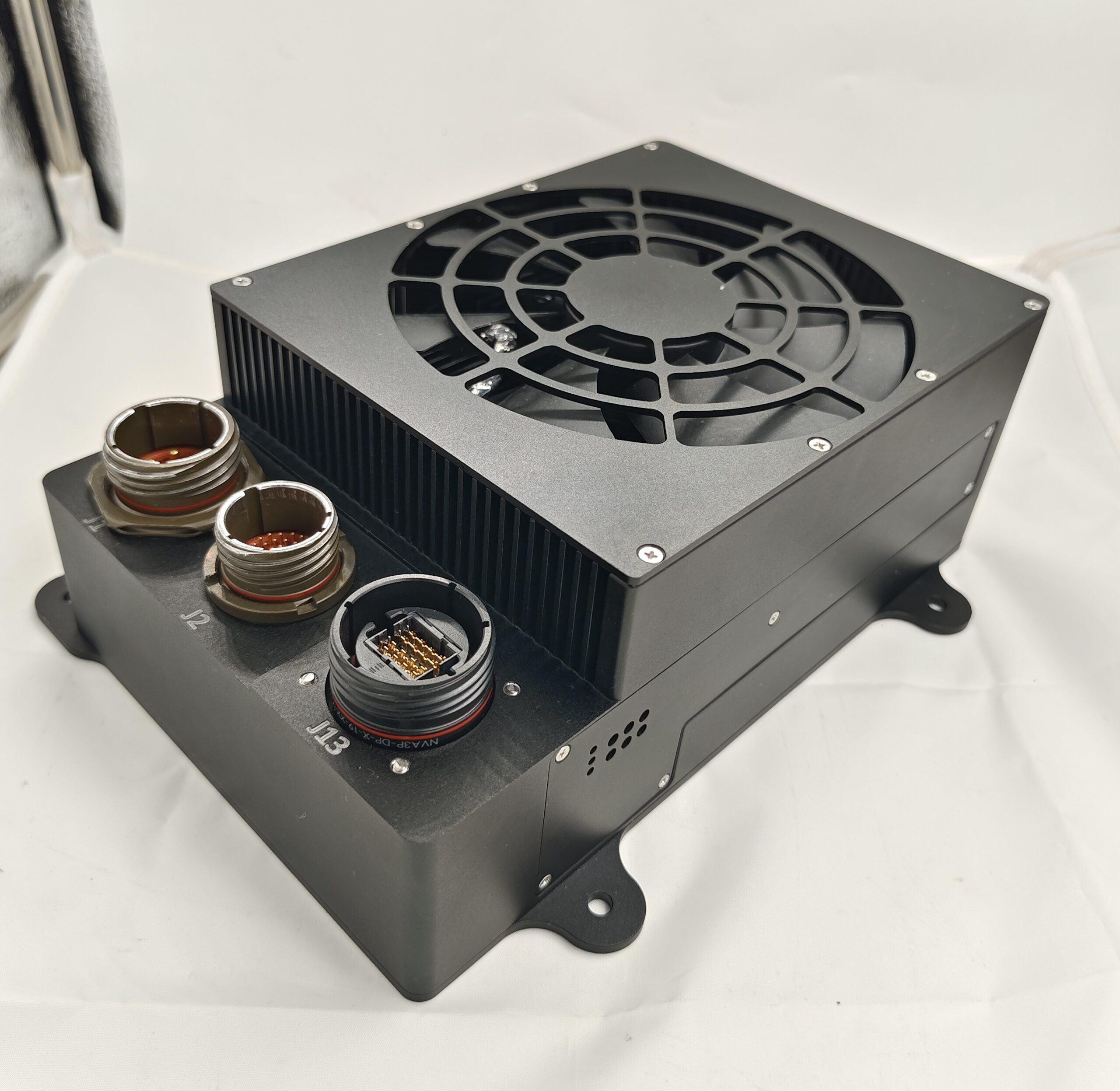

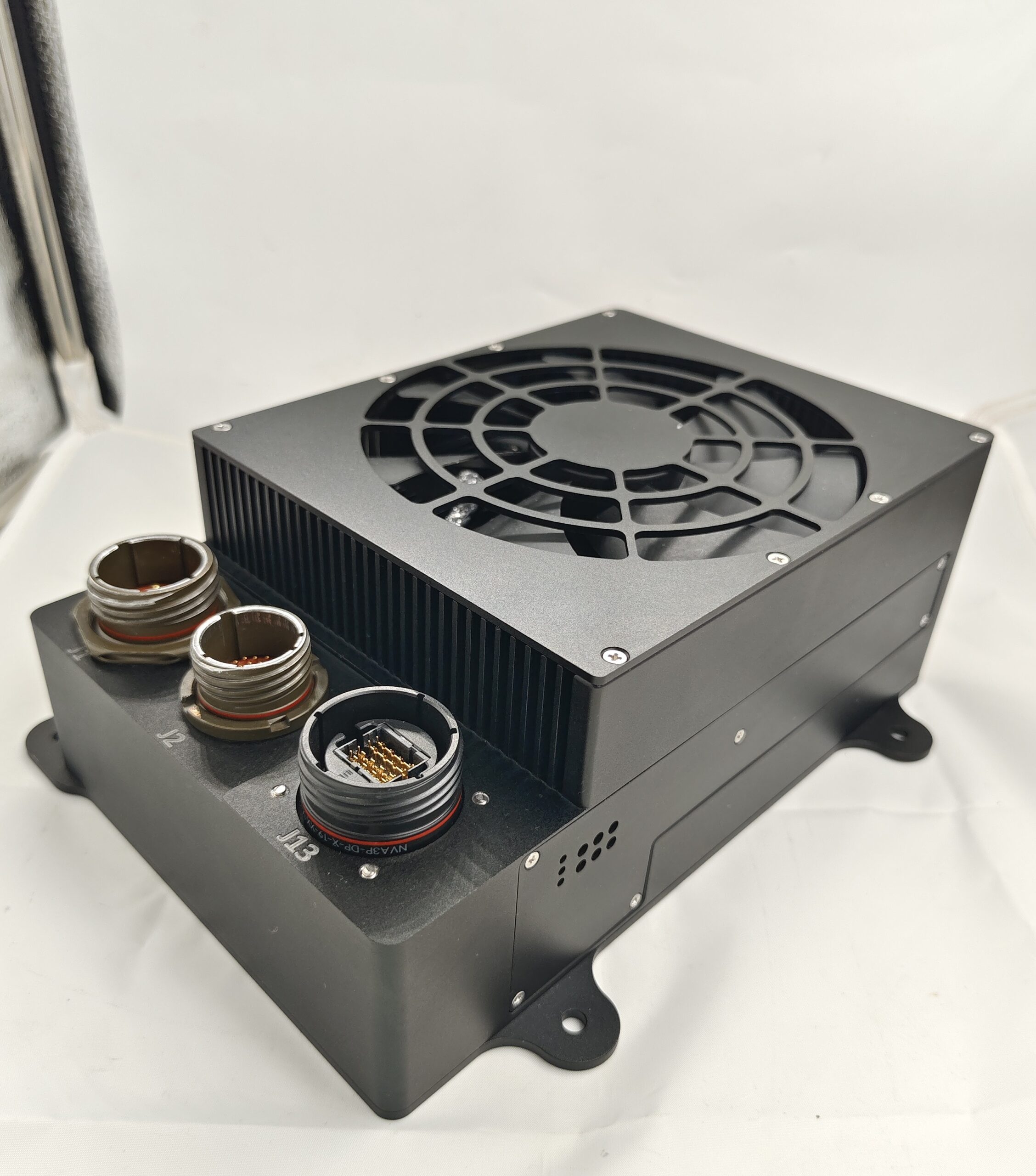

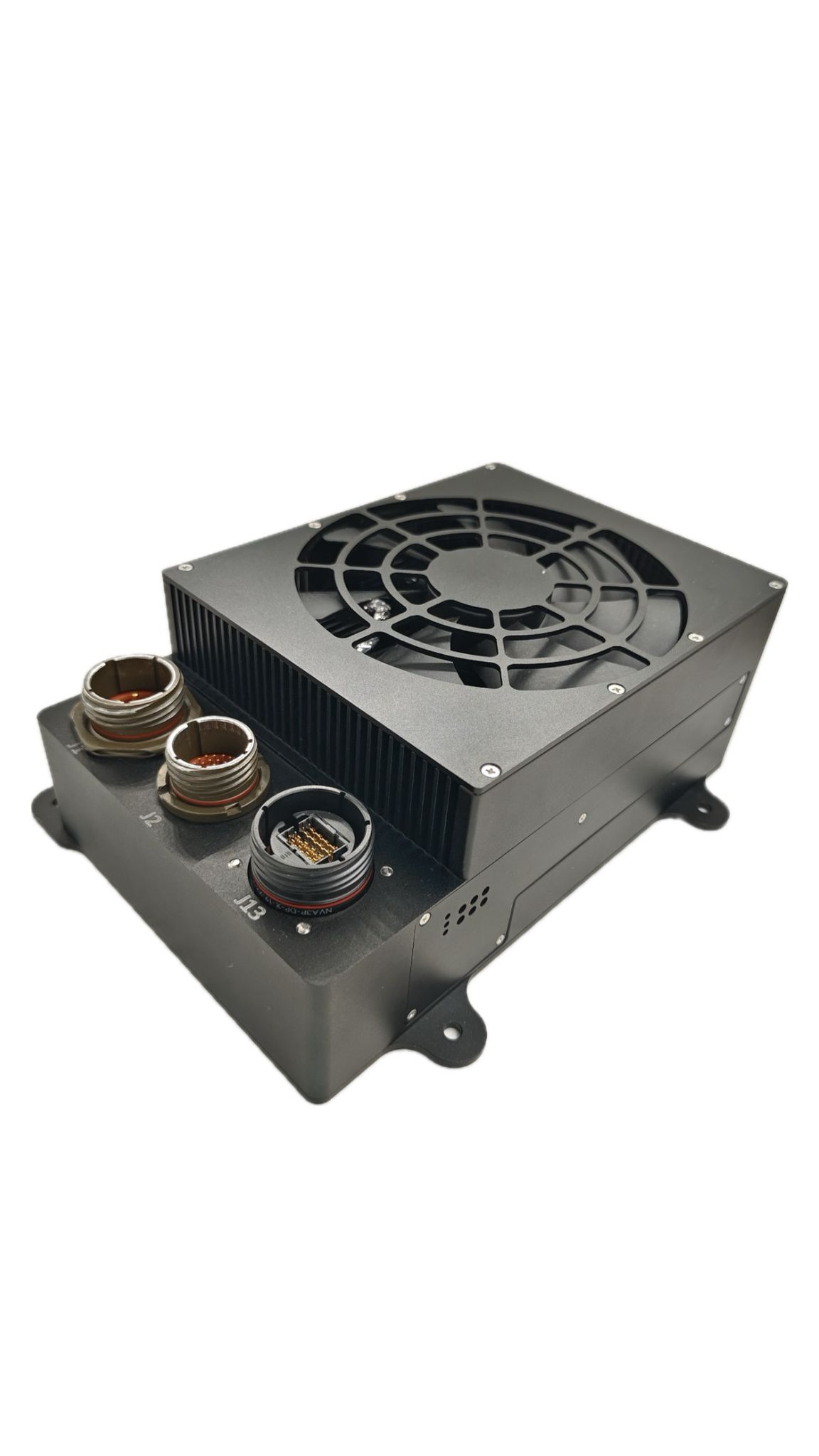

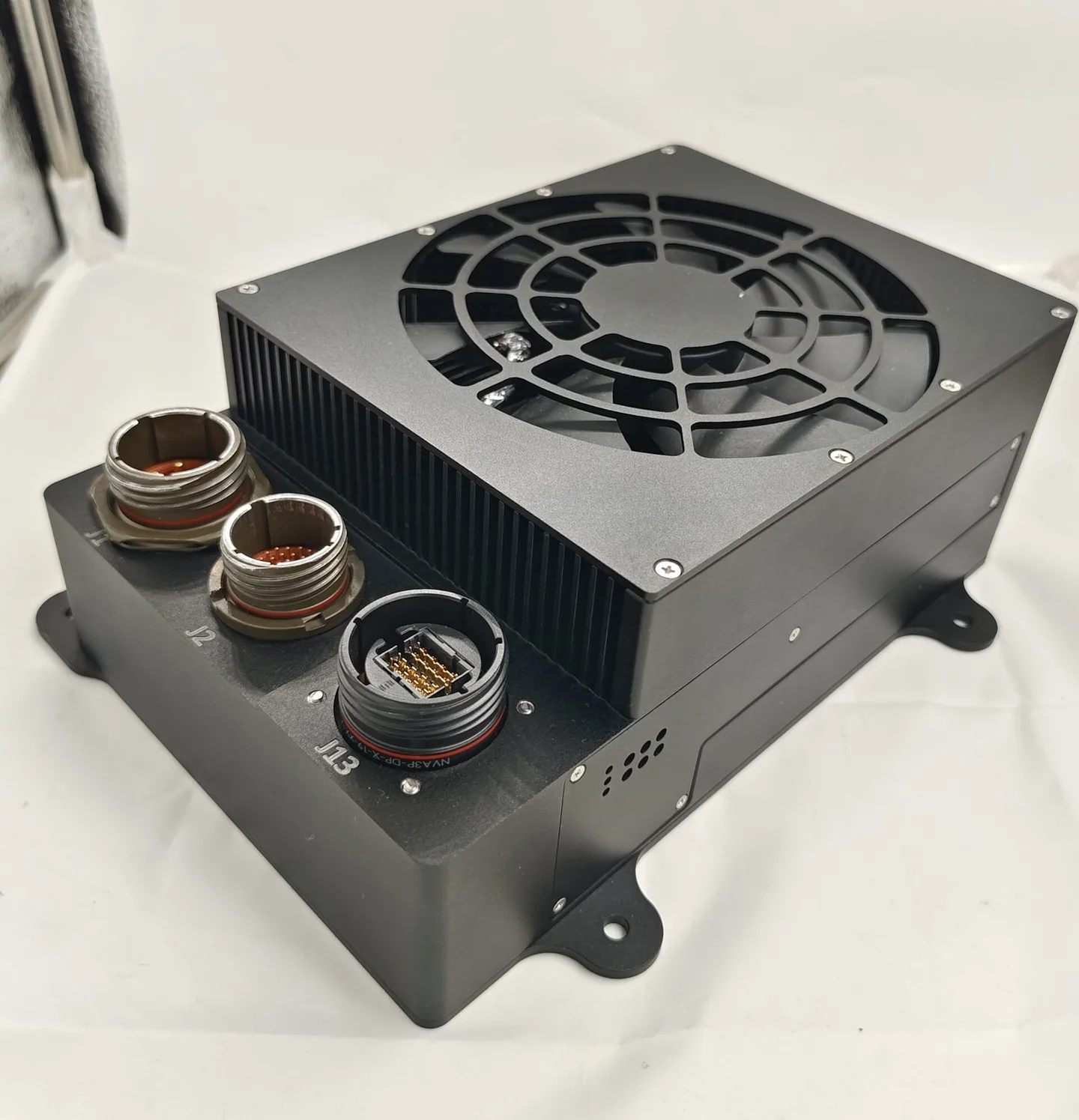

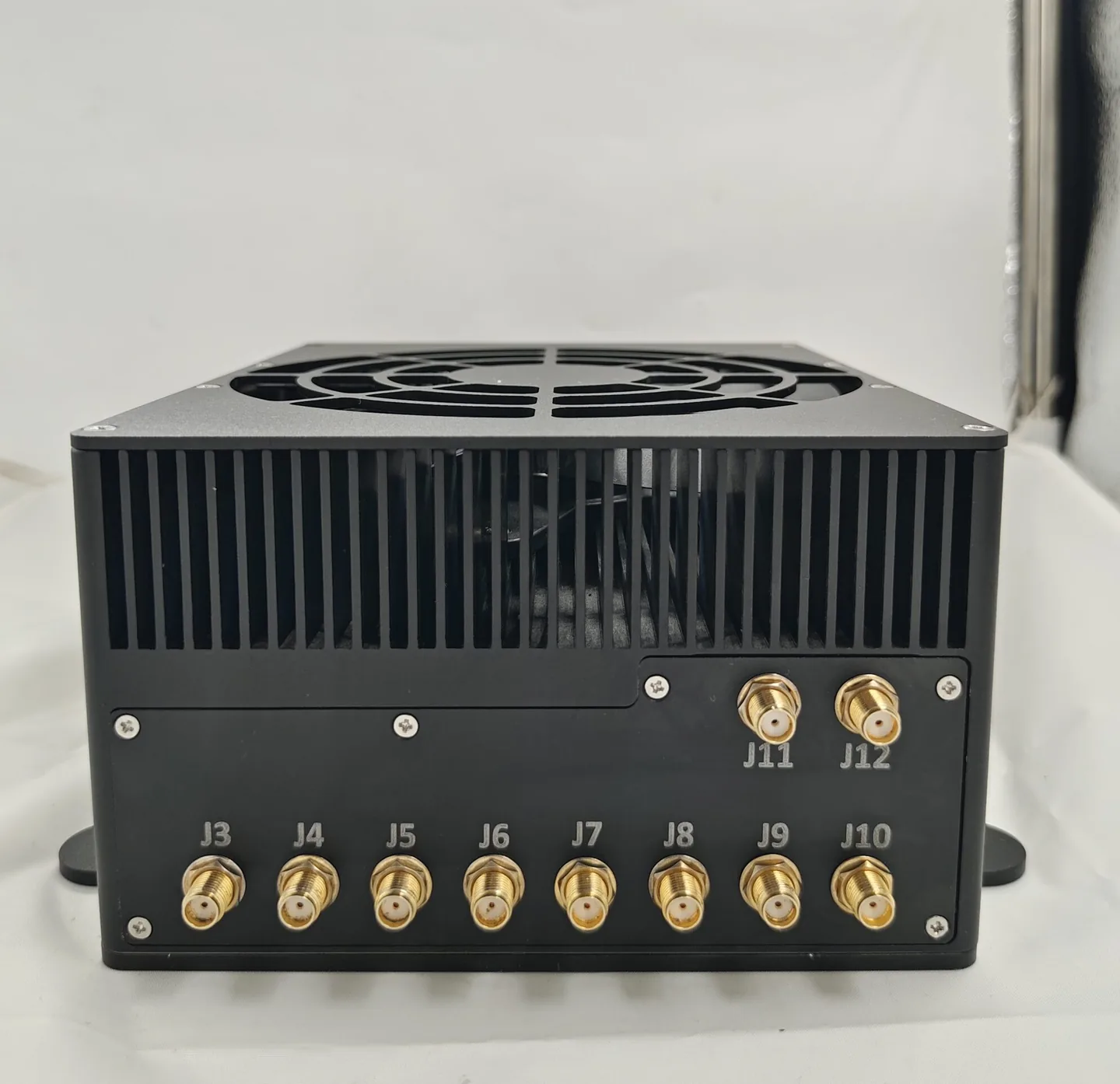

iMAGIC Rugged RFSoC FPGA SDR Platform

A rugged system-in-a-box for software-defined radio, data acquisition and signal processing, developed by CoreTech. It combines Xilinx RFSoC with a 14th Gen Intel Meteor Lake processor on COM-HPC, in a compact, conduction-cooled, IP65 enclosure built for low size, weight and power.

Request current datasheet

Developed by CoreTech Systems

RF channels
4 or 8 ADC/DAC
Host processor
Intel 14th Gen, COM-HPC
Interface
PCIe Gen 4, 16 DMA
Enclosure
IP65, conduction-cooled

Applications

Where it fits.

Signals intelligence, electronic warfare and radar systems need to capture wide RF bandwidth and process it at the edge, often in a small, sealed enclosure. The iMAGIC puts the RF front end, the FPGA and a modern x86 processor in one rugged box, so signals can be captured, processed and controlled in one place.

  • Signals intelligence (SIGINT)
  • Electronic warfare (EW)
  • Radar systems
  • Military communications
  • SATCOM and wireless communications
  • Test, measurement and recording

Configuration

Choose the right configuration.

Tell us the channel count, the processing and the interfaces your system needs, and our engineers will configure the iMAGIC for it.

RF platform Xilinx Zynq UltraScale+ RFSoC Gen 3, on an RFSoC system-on-module
Channels 4 or 8 ADC and DAC channels
Host processor Intel 14th Gen (Meteor Lake) on a COM-HPC module
Data path PCIe Gen 4 interface, up to 16 DMA channels
Spectrum control Signal and spectrum protocol for spectrum observation, control and RF device capability management, with time- and spectrum-domain management
Architecture Modular and configurable
Enclosure Conduction-cooled, IP65 against dust and water

Why CoreTech

  • Developed by CoreTech, so configuration and support come from the team that designed it.
  • A local contact in Rishon LeZion, Israel, for quotations and technical questions.
  • Every system is checked by CoreTech's technical team before delivery.
  • A 1-year warranty, with an optional extended warranty of up to 5 years.
  • RMA cases are handled in Israel, and repairs are carried out in Israel by CoreTech's technical team.
  • Lead times from about a week to a few months, depending on the configuration.

Questions

Common questions.

Who makes the iMAGIC?

CoreTech. The iMAGIC is CoreTech's own development, configured and supported by its team in Israel.

What is the iMAGIC used for?

Signals intelligence (SIGINT), electronic warfare, radar, military communications, SATCOM and wireless communications, and test, measurement and recording.

How many RF channels does it have?

4 or 8 ADC and DAC channels, based on Xilinx Zynq UltraScale+ RFSoC Gen 3.

Which processor runs the system?

An Intel 14th Gen (Meteor Lake) processor on a COM-HPC module, with a PCIe Gen 4 interface and up to 16 DMA channels.

How rugged is it?

It is conduction-cooled and built to IP65 for dust and water resistance, for harsh and demanding environments.

Can it be configured for my system?

Yes. The architecture is modular and configurable. Tell us the channel count, processing and interfaces you need, and CoreTech's engineers will configure it.

What warranty does the iMAGIC have?

A 1-year warranty, with an optional extended warranty of up to 5 years. CoreTech handles RMA cases in Israel, and repairs are carried out in Israel by its technical team.

How do I get a quote in Israel?

Use “Request a quote” on this page, or call +972-73-3224235.
