RD1119 Rugged 1U Folding Rack Display

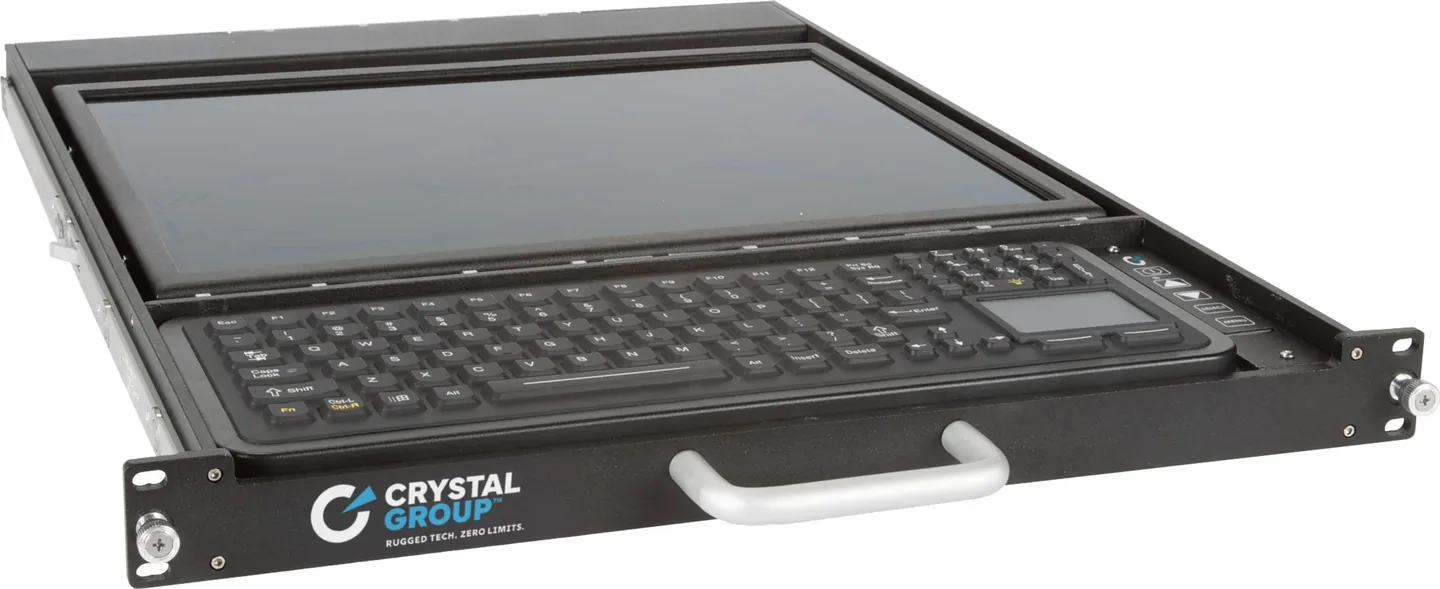

A 19-inch display and a sealed keyboard that fold into a single 1U rack drawer. 1600 nits, 1280 × 1024 (SXGA), DVI and/or VGA input, in an all-aluminum unit under 22 lb (9.98 kg). Built by Crystal Group and supplied in Israel by CoreTech.
Manufactured by
Built for Naval systems
- Display
- 19", 1280 × 1024
- Brightness
- 1600 nits
- Rack space
- 1U, EIA-310
- Weight
- Under 22 lb (9.98 kg)
Applications
Where it fits.
Rack systems on land, at sea or in the air still need a local screen and keyboard for setup, maintenance and console control. The RD1119 folds a 19-inch display and a sealed keyboard with touchpad into one 1U drawer, built for the brightness, contrast and resistance to impact, scratches, condensation and dust that military and industrial systems demand.
- Rack platforms
- Transit cases
- System console control for hyperconverged systems
- Military, industrial and commercial systems on land, at sea or in the air
Technical detail
Know the platform.
RD1119 technical specifications
| Height | 1.75" (4.45cm) |
|---|---|
| Width | 17.5" (44.45cm) EIA-310 Rack Compliant |
| Depth | 24" (60.96cm) |
| Weight | Less than 22 lbs (9.98 kgs) |
| Power Supply | 120/240 VAC |
| Manufacturer and type | AUO 19” Diagonal, TFT TN, normally black AMVA |
| Resolution | SXGA 5:4 1280x1024 |
| Active area | 376.32 mm (H) x 301.06 mm (V) |
| Pixel pitch | 0.294 x 0.294 |
| Pixel configuration | RGB Vertical Stripe |
| Color palette | 16.7 M colors (RBG 6-bit + Hi-FRC) |
| Viewing angle | +/-80V, +/-85H minimum |
| Luminance | 1600 nits normal to display surface (standard configuration) |
| Contrast ratio | 1000:1 normal, type |
| Color gamut | 70% |
Configuration affects weight and available options. Confirm your required configuration with CoreTech.
Configuration
Choose the right configuration.
Tell us about the rack, the video source and where the system will be installed, and we will come back with a configuration and a quotation.
| Display | 19" LCD, SXGA 1280 × 1024 (5:4), 16.7 million colors, 70% color gamut |
|---|---|
| Brightness and contrast | 1600 nits, 1000:1 contrast ratio |
| Viewing angle | ±85° horizontal, ±80° vertical |
| Cover glass | 3 mm laminated glass with anti-reflective, anti-glare and HEA surface treatment |
| Video input | DVI and/or VGA |
| Keyboard | Sealed iKey keyboard with touchpad, 10-key numeric pad and 12 function keys |
| Power | 120/240 VAC |
| Mounting | 1U drawer on Accuride slides or Jonathan rails; EIA-310 rack compliant |
| Size and weight | 1.75 in high, 17.5 in wide, 24 in deep (4.45 × 44.45 × 61 cm); under 22 lb (9.98 kg) |
| Environment | Tested to MIL-STD-810 for operating temperature (−30 °C to +70 °C), storage temperature (−30 °C to +70 °C) and vibration; designed to meet MIL-STD-810 humidity and altitude. MIL-S-901 Grade B, Grade A stowed |
Why source it through CoreTech
- A local contact in Rishon LeZion, Israel, for quotations and technical questions.
- Every system is checked by CoreTech's technical team before delivery.
- Every system comes with a 5-year warranty.
- RMA cases are handled in Israel, and repairs are carried out in Israel by CoreTech's technical team.
- Lead times from about a week to a few months, depending on the configuration.
Questions
Common questions.
How bright is the RD1119?
Its LCD delivers 1600 nits and a 1000:1 contrast ratio, behind 3 mm laminated glass with anti-reflective and anti-glare treatment, which Crystal designs for sunlight readability.
How much rack space does it take?

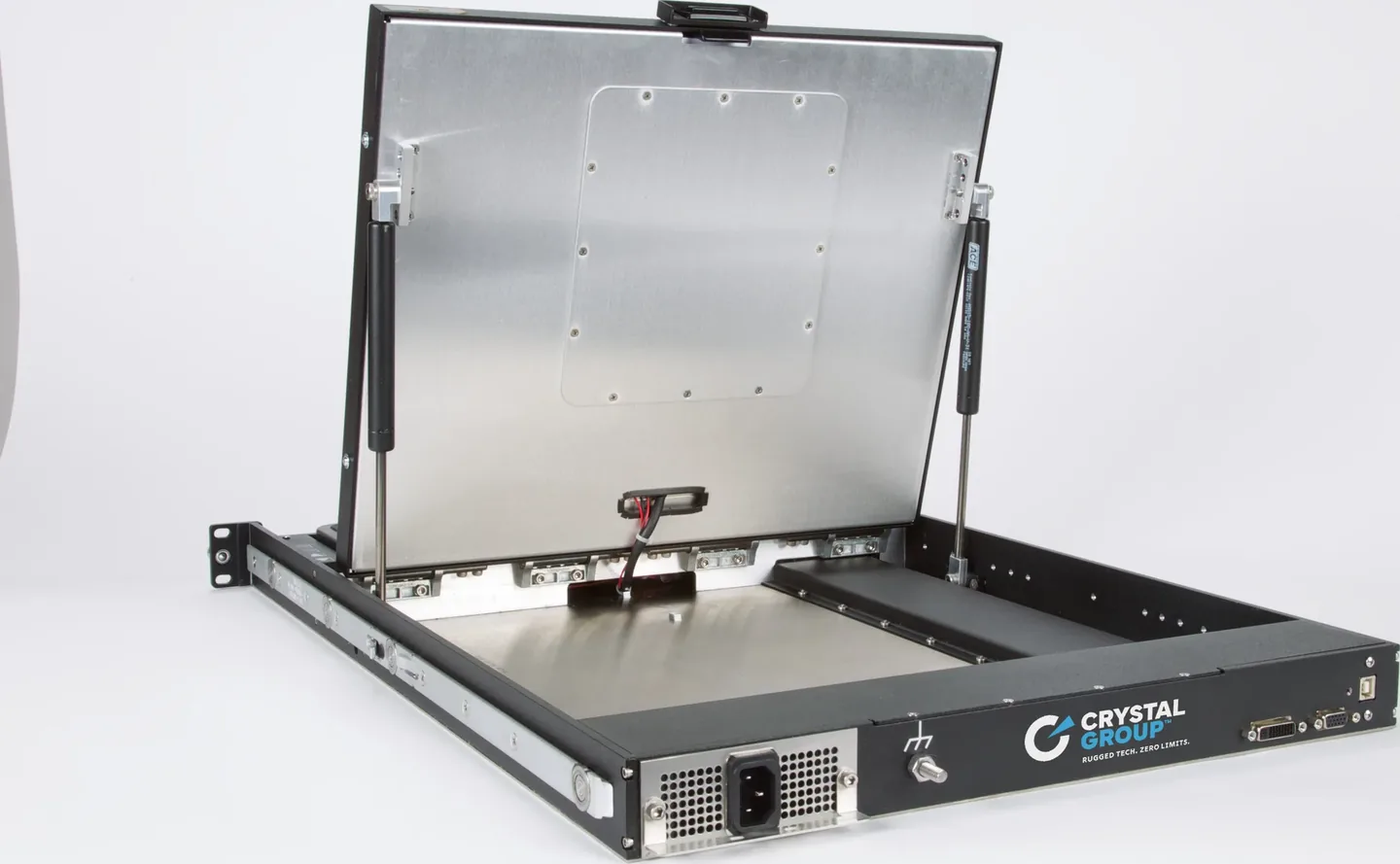

One rack unit (1U, 1.75 in). The display and keyboard fold into a drawer that slides out on Accuride slides or Jonathan rails, in an EIA-310 rack.
Which video inputs does it accept?
DVI and/or VGA.
What is the resolution?
SXGA, 1280 × 1024 (5:4), on a 19-inch diagonal.
What temperature range does it operate in?
−30 °C to +70 °C, tested to MIL-STD-810 Method 501. The datasheet notes that at low temperatures the LCD's response time can slow down.
Does it meet shipboard shock requirements?
The datasheet lists MIL-S-901 Grade B, and Grade A when stowed.
What power does it need?
120/240 VAC.
What warranty do the systems have, and who handles RMA?
Every system comes with a 5-year warranty. CoreTech handles RMA cases in Israel, and repairs are carried out in Israel by its technical team.
How long does delivery take?
From about a week to a few months, depending on the configuration.
How do I get a quote in Israel?
Use “Request a quote” on this page, or call +972-73-3224235.
